MFCC Multi-Functional
Container Chassis HD

Transport of all types of sea containers

Buying a new MFCC HD?

This container chassis offers you many advantages. So you can always take the container that is offered to you. This gives the driver a user-friendly chassis.

Ask us
your question!

Determine
your target price

General
specifications

  • All ISO from 20 till 45FT

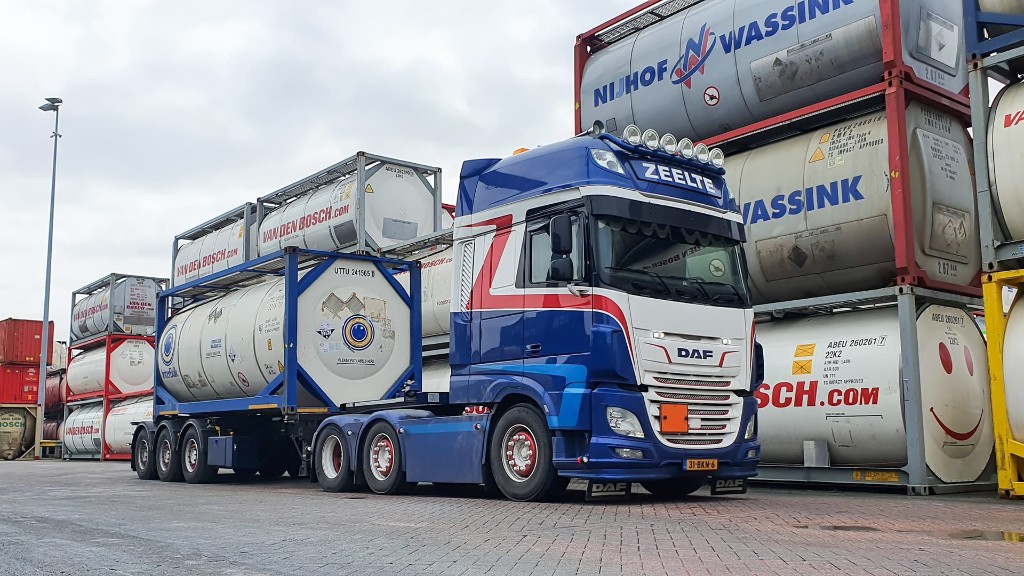

  • Standard tank/swapbody position
  • Easy to operate due to "Easy Select"
  • 385/55 R22.5 or 385/65 R22.5 Tires
  • Optional Genset
  • Optional extendable frontbar
  • Optional selftracking axle

Technical
specifications

  • Kingpin load 16T
  • Bogie load 27T
  • Tare weight ca.5,3T
  • Load capacity 37,7T
Specification sheet

Related
products

2CONnect (1+3) connectable containerchassis

The 2CONnect 1 + 3 is specially designed for hauliers who use a 3 axle truck (predecessor). In combination with this truck, one axle is sufficient to transport a 20 fts container. These two 20 ft container chassis are connectable and offer loading options for 20 ft, 2x 20 ft, 40 ft and 45 ft containers.

2CONnect (2+2) connectable containerchassis

The 2CONnect 2 + 2 is chosen if less heavy containers need to be transported. This is essential for Germany because of the combination weight of up to 40 tons. These two 20 ft container chassis are connectable and offer loading options for 20 ft, 2x 20 ft, 40 ft and 45 ft containers.

2CONnect (2+3) connectable containerchassis

The 2CONnect is extremely flexible in loading and unloading options for 20ft containers. These two 20 ft container chassis are connectable and offer loading options for 20 ft, 2x 20 ft, 40 ft and 45 ft containers.

Innovations
and techniques

Paint system

The anti-corrosion protection of a trailer is essential, you cannot simply do it 'again', it has to be done right first time!

Solutions for shipping container transport

We have a number of container chassis in our range for the transport of sea containers. Look here to see what solutions are available in the field of container transport.

Technique

Our trailers are often equipped with a number of technical highlights that make the trailer unique. Thanks to these techniques, you can transport cargo with your trailer that others cannot. Here you will find an overview of our techniques that we apply to our trailers
