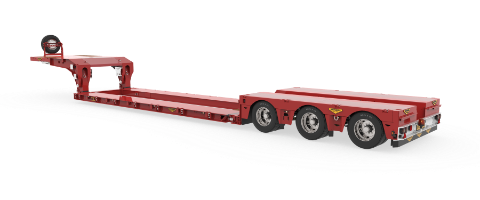

3-axle low loader with
independent wheel suspension SL2

Low and short axle bogie

Buying a 3-axle SL2 low loader?

The 3-axle SL2 low loader can transport cargo that protrudes over the axles due to the short and low axle configuration. The SL2 low loader also has more loading length in the low bed.

Ask us
your question!

Determine
your target price

General
specifications

  • 1x extendable
  • Independent suspension (SL2)
  • 245/70 R17.5 tires
  • Movable detachable neck
  • Outer beams linkable
  • Load capacity app. 40 t

Technical
specifications

  • Fifth wheel load 25 t
  • Bogie load 36 t
  • Tare weight ca.18.5 t
  • Loading height 290 mm
  • Bed lenght 7,500 mm
  • Extension 5,750 mm
  • Total extended trailer lenght 21,950 mm
Specification sheet
