3-axle hydrauÂlically steered
semi low loader double extender
Strongest double extender of its kind
Looking for a 3-axle double extendable semi?

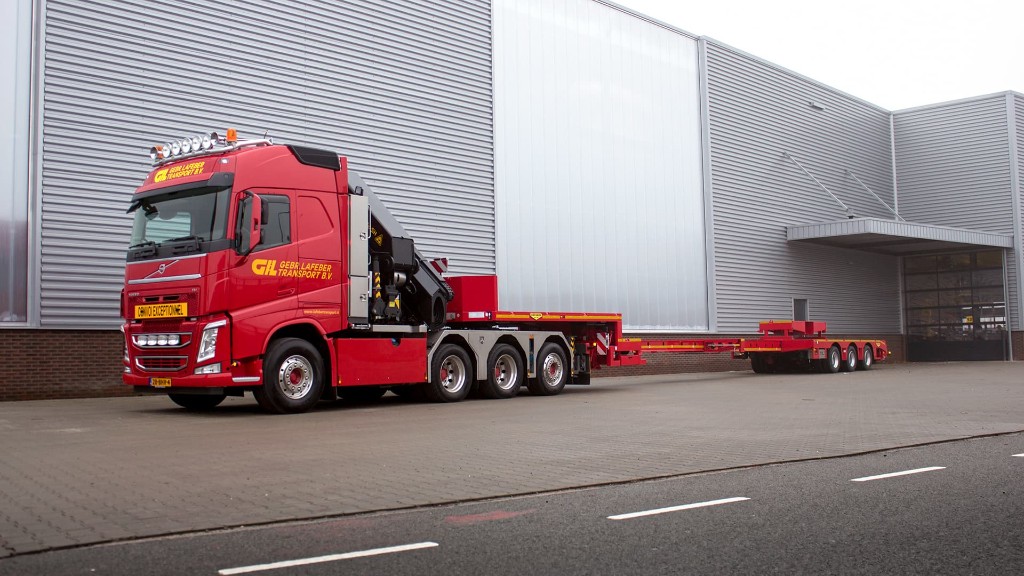

The double extendable, 3-axle, hydraulically steered semi low loader is the strongest of its kind. Due to its long lifespan, the cost per year remains low.3-axle semi low loader hydraulically steered double extendable

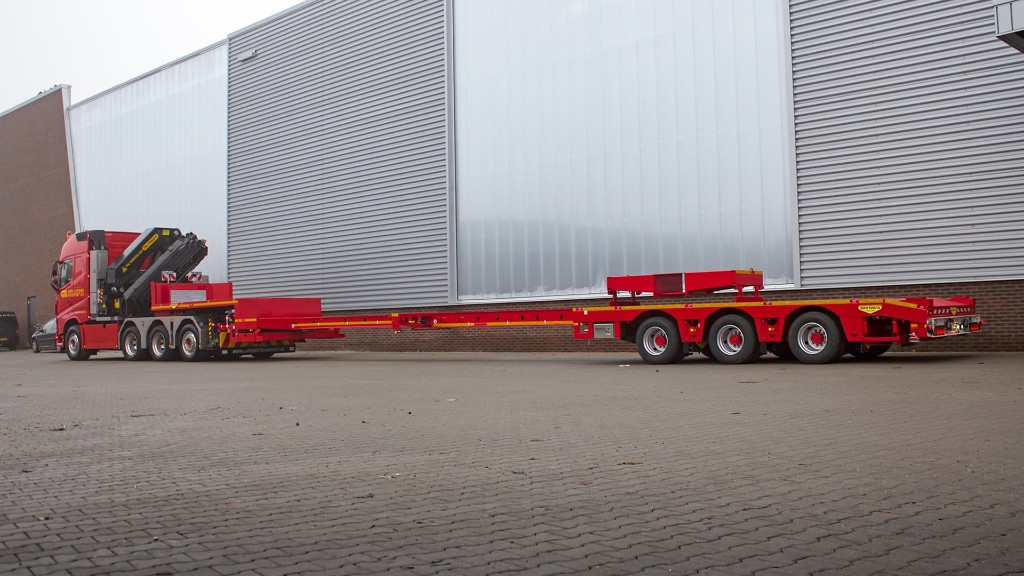

The 3-axle semi low loader is extends twice up to a maximum length of 26 meters. Thanks to the hydraulic steering, you can access difficult-to-reach locations with ease. This 3-axle version is equipped with extra spacing between the axles. This means that the trailer is plated for 10 tonne axle capacity. Other 3-axle semi low loaders only get 9 tonnes per axle. Overall, this gives you an extra 3 tonnes more payload with this semi low loader. This 3-axle trailer is built so that almost any type of load can be carried. An ideal trailer for your fleet!
General
specifications
- 2x extendable
- Airsuspension hydr. steered
- 245/70 R17.5 tyres
- Fixed neck
- Load capacity app. 40 t
Technical
specifications
- Fifth wheel load 23 t
- Bogie load 30 t
- Tare weight ca.14.5 t
- Platform height 920 mm
- Extension 12,600 mm
- Total extended lenght 25,680 mm
