4-axle independent suspension
SL2 semi low loader with ramps
47 tons on a 4-axle trailer with ramps
Looking for a 4-axle SL2 semi with ramps?This 4-axle SL2 semi low loader is a real all-rounder. The hydraulic ramps make it safe and easier to load and unload wheeled and tracked vehicles. Transporting higher and heavier loads is now possible and you can stand-out from other operators.

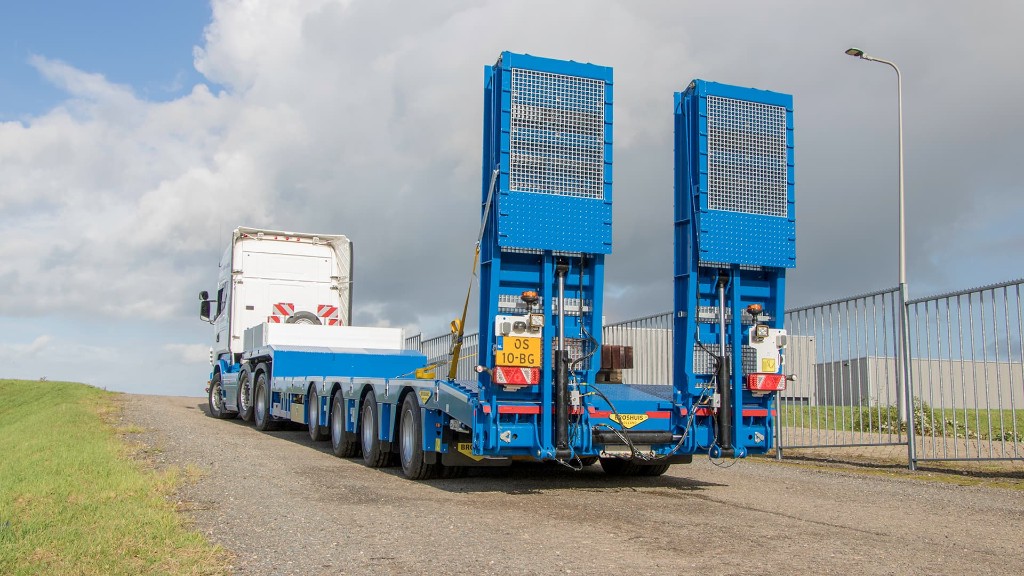

4-axle semi low-loader SL2 with ramps
The 4-axle SL semi low-loader with hydraulic ramps is suitable for heavy tracked and wheeled vehicles. This is due to the low dead weight, 12 tonne axle load per axle line and the ramps. Thanks to the robust side beam, you can be assured that you have one of the strongest trailers of its kind. This trailer is specially designed for a wide variety of loads, giving you more flexibility. The trailer has a single extension, allowing longer loads to be transported. The hydraulic ramps make it safer and easier to load tracked and wheeled vehicles. Remote control for the ramps is also available as an option, so that the operator can work in greater safety.
- 1x Extendable
- Independent suspension (SL2)
- 245/70 R17.5 Tires
- Fixed neck
- Load capacity app. 55T
- Hydraulic ramps
- Kingpin load 23T
- Bogie load 48T
- Tare weight ca.16T
- Platform height 850mm
- Extension 6400mm
- Total extended lenght 19800mm
4-axle SL2 semi low loader
This 4-axle semi low loader SL2 is single-extendable. The semi trailer is extremely low and light due to the independent suspension. This provides you with many operating advantages.
4-axle SL2 semi low loader double extender
This 4-axle semi low loader SL2 extends twice to approximately 25.5 meters. The semi trailer is extremely low and light due to the independent suspension. This provides you with many operating advantages.
3-axle SL2 semi low loader with ramps
This 3-axle semi low loader SL2 is single-extendable and has hydraulic ramps. The semi trailer is extremely low and light due to its independent suspension. This provides many advantages for you as an operator.
The anti-corrosion protection of a trailer is essential, you cannot simply do it 'again', it has to be done right first time!
SL2 Independent wheel suspension
The SL2 independent wheel suspension offers many advantages over other axle types. Low weight, lowest loading floor height (from 780 mm), extremely large steering angle and extremely stable handling.
To allow the user to work with an even safer trailer, we have designed four types of ramps that fully meet our high safety and quality requirements.
