Looking for a 9-axle SL2 semi?This 9-axle SL2 semi low loader with independent suspension is specifically-designed for heavy loads. The trailer is double-extending, ensuring greater functionality.

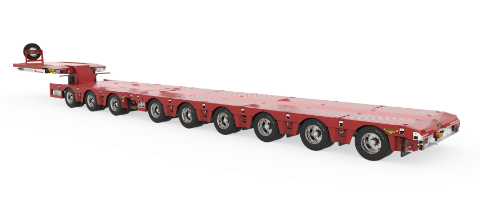

9-axle double extending semi low loader SL2
This double-extending SL2 trailer is the ideal choice for long, heavy and high loads. Due to its independent suspension, this trailer has a number of unique advantages. For example, this 9-axle version has a loading floor height of 780 mm, whereby the trailer can still drive and steer with ease. In addition, the trailer has a low tare weight and, thanks to the high axle capacity, an extremely high payload. Because this 9-axle trailer is designed as a 3 + 6 variant, the first three axles remain at the front of the trailer when extending. This provides the ideal weight distribution. Thanks to the robust construction methods employed, this is the strongest trailer of its kind.
- 2x Extendable
- Independent suspension (SL2)
- 245/70 R17.5 Tires
- Movable detachable neck
- Load capacity app. 105T
- Kingpin load 30T
- Bogie load 108T
- Tare weight ca.32,5T
- Platform height 850mm
- Extension 17330mm
- Total extended lenght 37115mm
9-axle SL2 semi low loader (3+6)
This 9-axle SL2 semi low loader is designed as a 3 + 6 version. This variant is single extendable. The SL2 provide you with a strong trailer that has a high payload.
9-axle SL2 semi low loader double extender (2+7)
This 9-axle semi low-loader is constructed as a 2 + 7 version, extending twice, up to 30 meters. The SL2 axles ensure a strong trailer and high payload.
9-axle SL2 semi low loader (2+7)
This 9-axle SL2 semi low loader is constructed as a 2 + 7 version with a single extension. The SL2 axles provide you with strong trailer and high payload.
SL2 Independent wheel suspension
The SL2 independent wheel suspension offers many advantages over other axle types. Low weight, lowest loading floor height (from 780 mm), extremely large steering angle and extremely stable handling.
