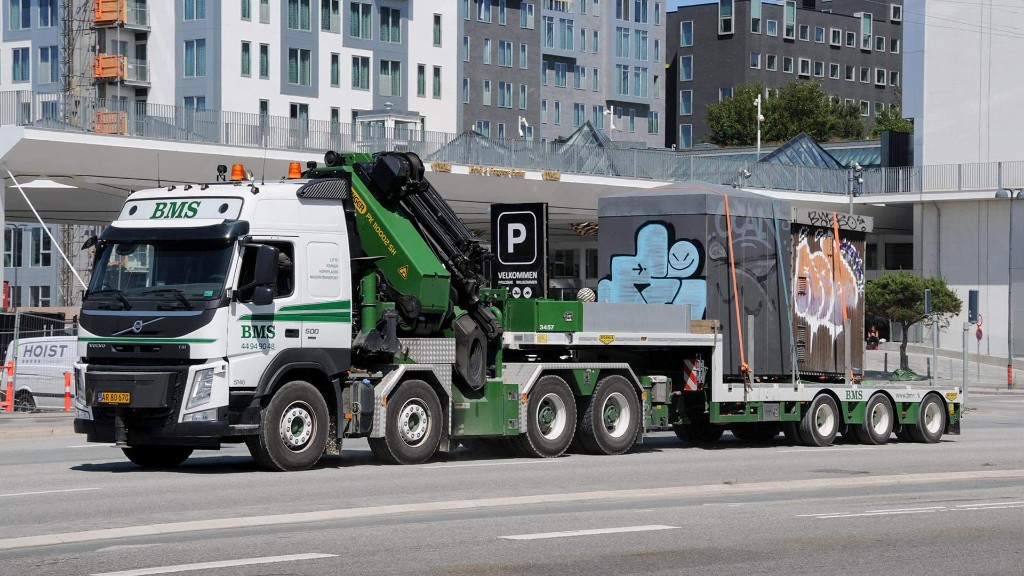

Crane Trucks
A crane truck requires a trailer that is perfectly matched to the combination. A standard gooseneck is often too short, causing the load to be positioned further away from the crane and axle load limits to be exceeded more quickly. That is why Broshuis develops trailers tailored to the dimensions and characteristics of the truck equipped with a folding crane. This keeps the combination within the legal overall length of 16.5 metres, without compromising payload, usability or manoeuvrability.
Advantages
- Adapted to the dimensions of the truck and folding crane.
- Compliant with the legal combination length of 16.5 metres.
- Optimised swing radius and front overhang for maximum manoeuvrability.
- Free movement of the truck beneath the trailer, even with multi-axle vehicles.
- Extra-low gooseneck of 16 cm or even 12 cm to maximise loading height.
Tailored to the Crane Truck

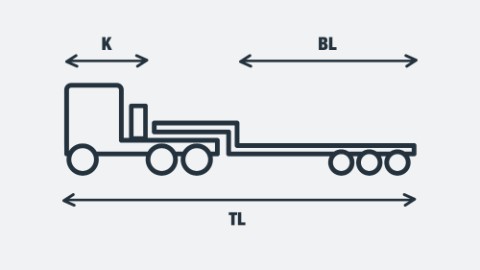

Trailers to be towed behind a truck with a crane are often different to the standard. A crane truck is generally longer than a normal truck. To stay within the legal size limit (combination length (TL)), the length of the trailer is modified (the longer the K-dimension (K) of the truck, the shorter the cargo bed length (BL) becomes). Because our trailers are built according to customer wishes, we can respond optimally to what you need behind your crane truck.
Swing radius and front extension
Because the crane is placed on the back of the truck, the gooseneck of the trailer needs to be modified to enable the trailer to swing freely. The front extension of the trailer is modified for this. In the image below, the swing radius is indicated by ‘R’ and the front overhang with ‘FE’.

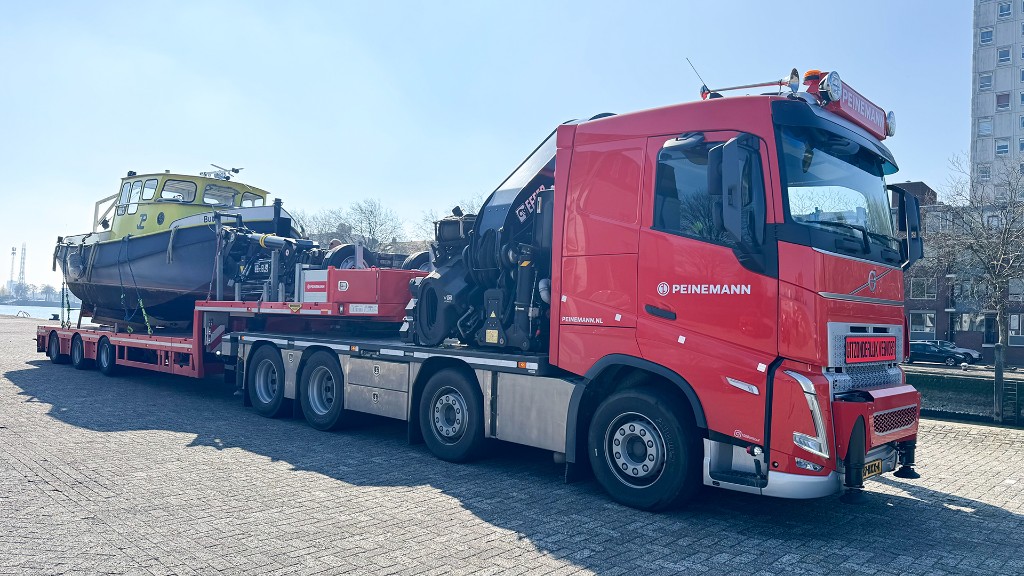

In a truck with multiple axles, this swing radius needs to be larger, as a result of which the distance from the fifth wheel to the rear side of the neck becomes longer. For a semi low loader, this longer neck also means a shorter low bed. One of our advantages is that we are also able to achieve a short front overhang with steered trailers. #BroshuisOnly
Low neck

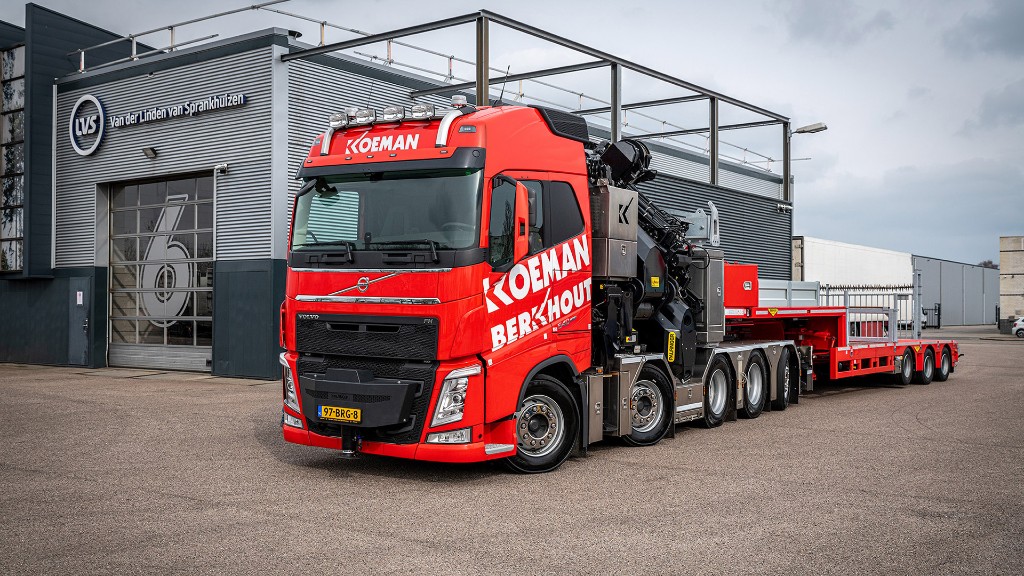

Aside from the changes above, a crane on the truck also means that the chassis of the truck needs to be reinforced. This is often done by placing an additional frame on top of the chassis. In this way, the coupling height of the truck becomes higher. If this height cannot be lost because cargo needs to be placed on the neck within the legal height limit, we can provide trailers with a low gooseneck. In this way, the height loss of the truck is compensated by the low neck of the trailer.
Proven in Practice
Customers such as Kees Koopman Transport and Bolk Transport make daily use of their Broshuis trailer and crane truck combination, where loading space, manoeuvrability and legal vehicle dimensions are optimally balanced. Discover in our references how these solutions are applied in practice.
