Buying a 1+3 dolly low loader?A dolly low loader combination with 1 axle at the front and 3 axles at the rear ensures an ideal weight distribution of the load. This increases the capability of this low loader.

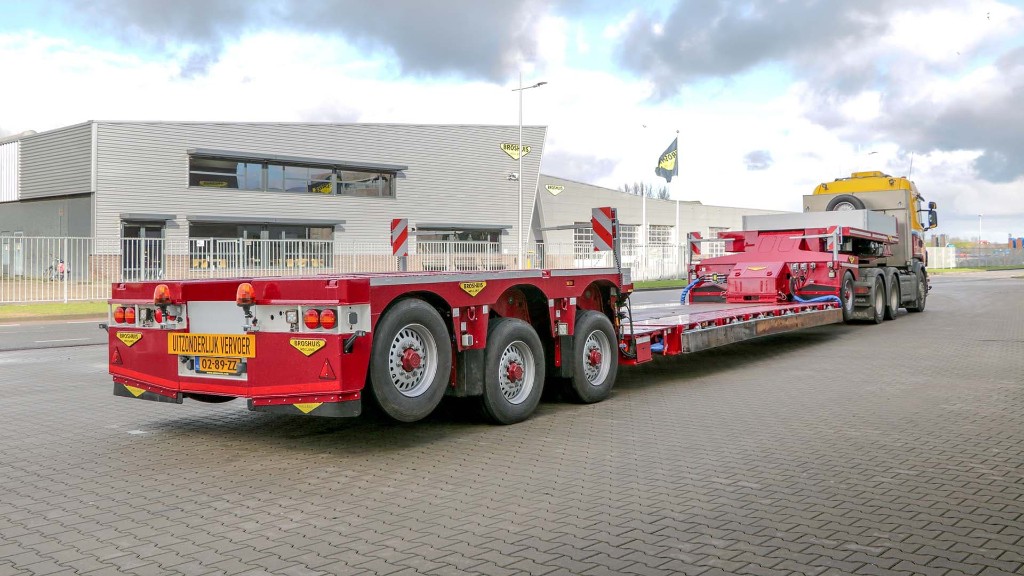

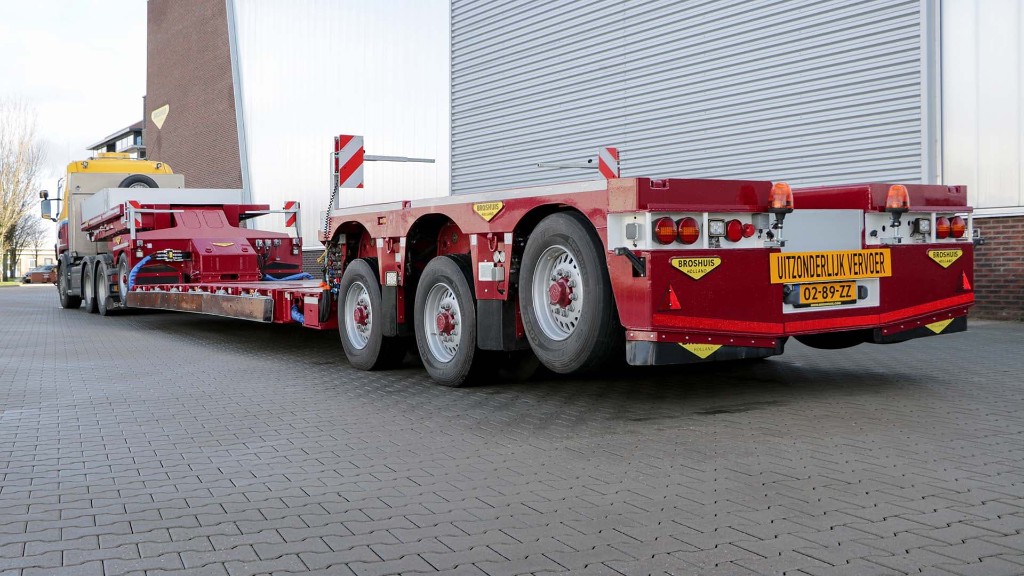

1+3 Low loader dolly combination PL2 HD
This low loader with PL2 HD pendle axles is characterized by the fixed dolly. A 1-axle dolly ensures optimal weight distribution in combination with the 3-axle axle set. Due to its high stroke, the pendular axle low loader is well suited for uneven terrain, such as construction sites. Ease of operation and a long service-life characterise these trailers. The high axle capability in combination with the low tare weight, ensure a high payload.
- 1x Extendable
- Pendular axles (PL2)
- 285/70 R19.5 Tires
- Movable detachable neck
- Outer beams linkable
- Load capacity app. 55T
- Fixed 1 axle dolly
- Kingpin load 25T
- Bogie load 55,6T
- Tare weight ca.27T
- Loading height 430mm
- Bed lenght 8000mm
- Extension 5500mm
- Total extended trailer lenght 23700mm
1+4 PL2 HD dolly low loader
This low loader has a 4-axle bogie with a fixed 1-axle dolly at the front. The dolly ensures an ideal weight distribution of the load. The total of 5 pendle axles in combination with the low tare weight ensure a high payload.
1+5 PL2 HD dolly low loader
This low loader has a 5-axle bogie with a fixed 1-axle dolly at the front. The dolly ensures an ideal weight distribution of the load. The trailer is also very easy to operate and its robust construction means that it has a long service life.
3-axle low loader
In addition to the 3-axle low loader with independent wheel suspension and pendular axles, this trailer is equipped with through-axles. Just like the other two variants, the trailer is equipped with hydraulic suspension and steering. The biggest advantage is in the purchase price and low maintenance costs.
The anti-corrosion protection of a trailer is essential, you cannot simply do it 'again', it has to be done right first time!
PL2 Pendle axles
Our PL2 pendle axles are of high quality. Thanks to the latest computer and production technologies, we have been able to build our pendle axles stronger and lighter.
We have designed a number of dollies for use in combination with our low-loaders. We supply the dolly in several variants, jeep dolly, fixed or removable dolly between neck and low bed.
