1+4-axle low loader
dolly combination PL2 HD

High payload

Buying a 1+4 dolly low loader?

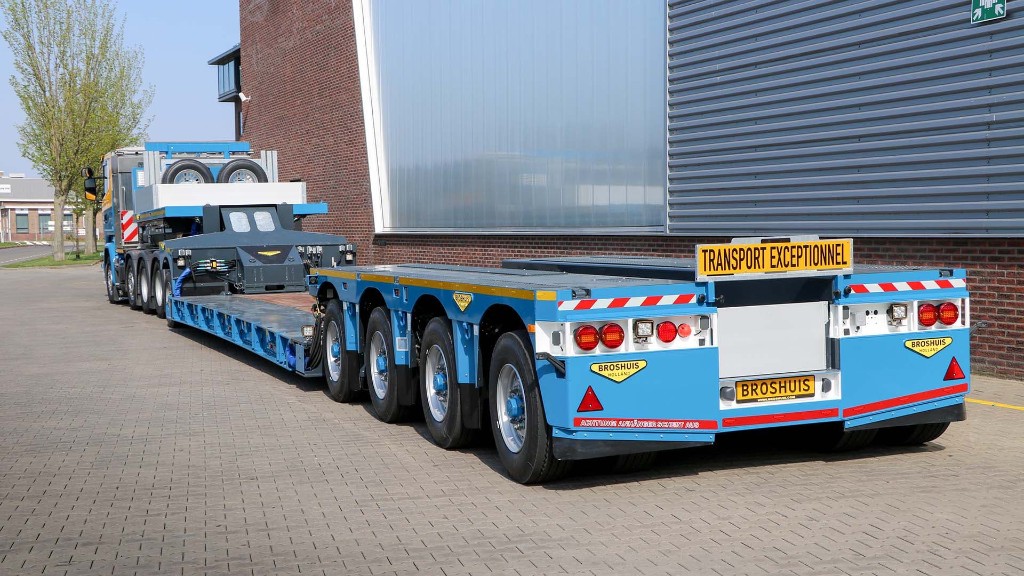

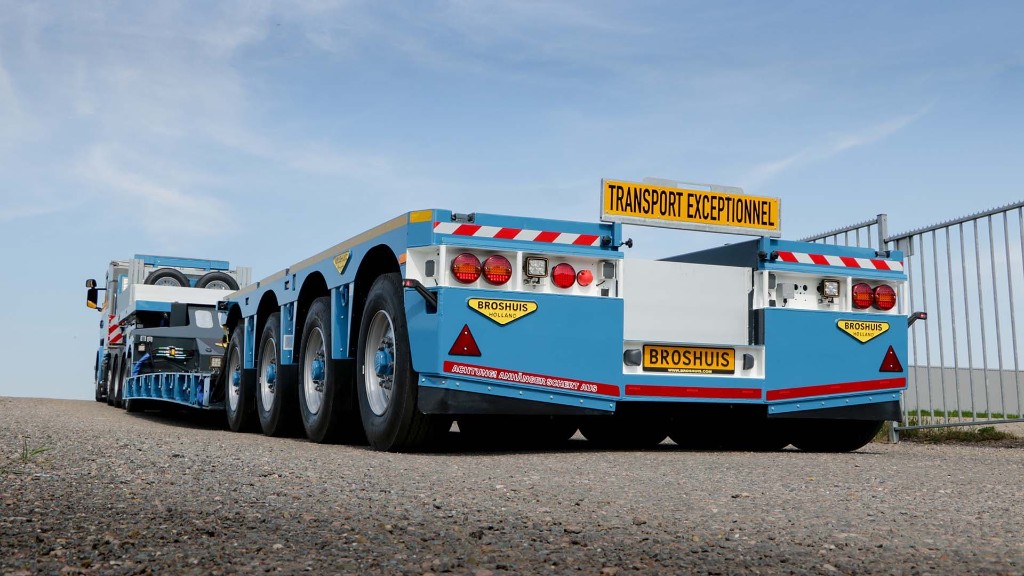

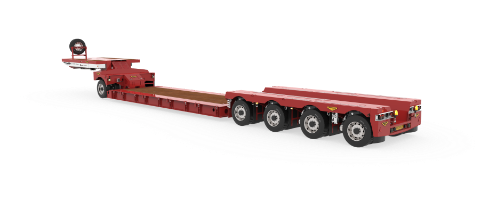

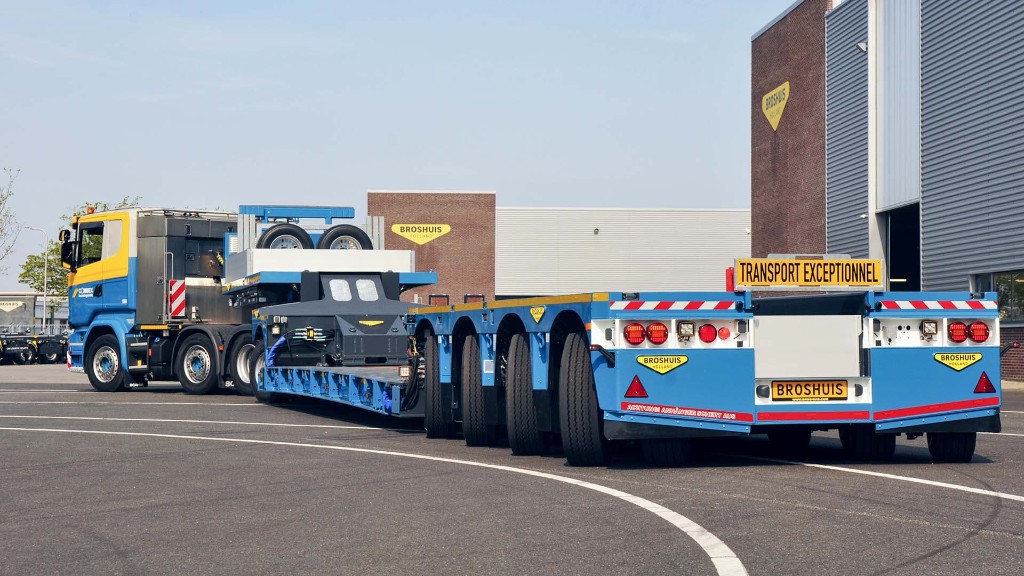

The 1+4 pendle-axle low loader has the highest payload of its kind with its high axle loads and low tare weight.

Ask us
your question!

Determine
your target price

General
specifications

  • 1x Extendable
  • Pendular axles (PL2)
  • 285/70 R19.5 Tires
  • Movable detachable neck
  • Outer beams linkable
  • Load capacity app. 65T
  • Fixed 1 axle dolly

Technical
specifications

  • Kingpin load 25T
  • Bogie load 69,5T
  • Tare weight ca.30,5T
  • Loading height 530mm
  • Bed lenght 8000mm
  • Extension 5500mm
  • Total extended trailer lenght 25210mm
