Buying a 2+4 dolly low loader?The 2+4 pendle axle low loader dolly combination offers you many advantages. You can experience these advantages for yourself by expanding your fleet with this multifunctional low loader.

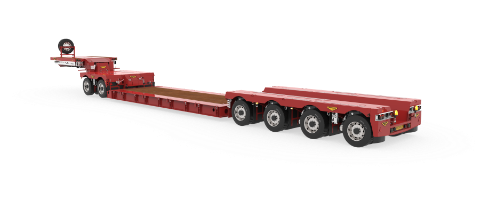

2+4 low loader dolly combination PL2 HD
Our 2 + 4 pendle axle low loader dolly combination PL2HD offers you many advantages. Thanks to the latest computer and production technologies, we have the opportunity to build the pendulum axle stronger and lighter. By performing strength calculations, we can see exactly where we can save weight without compromising on the strength of the pendulum axle. The trailer has more stroke and a wider crane arm recess than other pendular axle low loaders. With this low loader you have a high-quality trailer with a long service life.
- 1x Extendable
- Pendular axles (PL2)
- 285/70 R19.5 Tires
- Movable detachable neck
- Outer beams linkable
- Load capacity app. 70T
- Linkable 2 axle dolly
- Kingpin load 25T
- Bogie load 72T
- Tare weight ca.27,8T
- Loading height 530mm
- Bed lenght 8000mm
- Extension 5500mm
- Total extended trailer lenght 26720mm
1+4 PL2 HD dolly low loader
This low loader has a 4-axle bogie with a fixed 1-axle dolly at the front. The dolly ensures an ideal weight distribution of the load. The total of 5 pendle axles in combination with the low tare weight ensure a high payload.
2+5 PL2 HD dolly low loader
This 5-axle low loader dolly combination, with a 2-axle removable dolly, has the highest payload of its kind with a high axle load and low tare weight. A 600 mm stroke and a wide crane arm recess make this low loader unique.
3+5 PL2 HD dolly low loader (center beam)
This 5-axle low loader dolly combination, with a 3-axle removable dolly, has the greatest payload of its kind with a high axle load and a low tare weight. 600 mm stroke and a wide and deep crane arm recess make this low loader unique.
The anti-corrosion protection of a trailer is essential, you cannot simply do it 'again', it has to be done right first time!
PL2 Pendle axles
Our PL2 pendle axles are of high quality. Thanks to the latest computer and production technologies, we have been able to build our pendle axles stronger and lighter.
We have designed a number of dollies for use in combination with our low-loaders. We supply the dolly in several variants, jeep dolly, fixed or removable dolly between neck and low bed.
