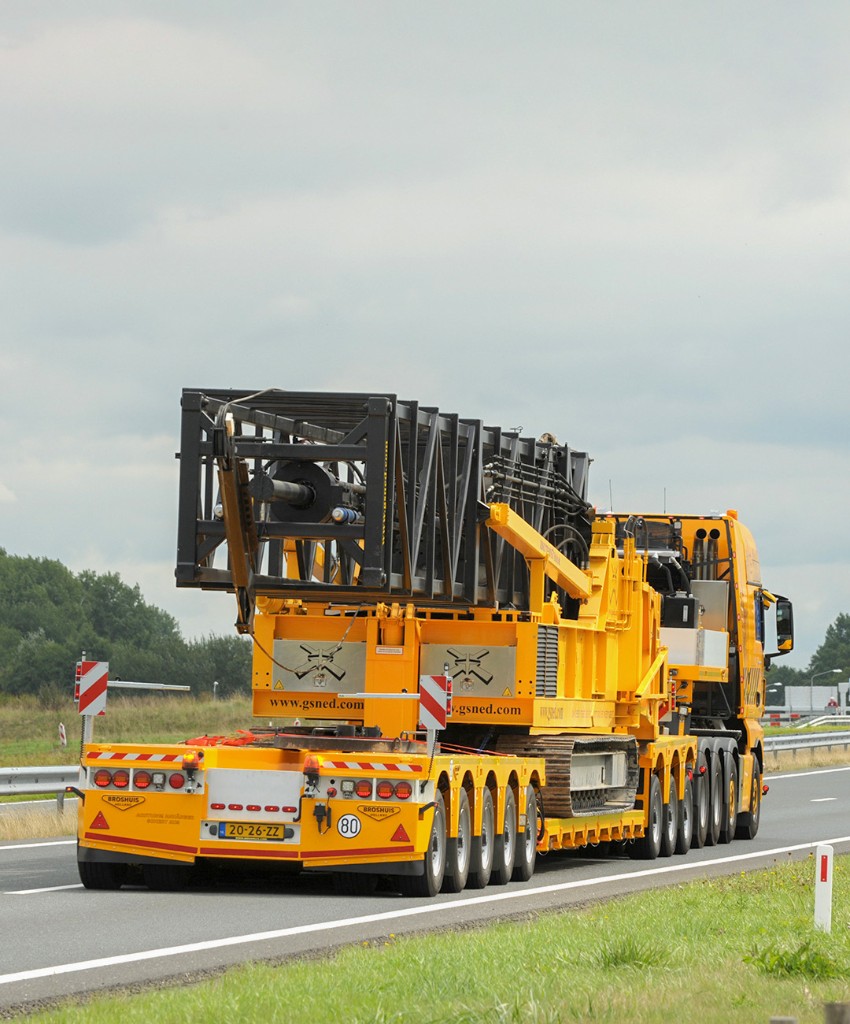

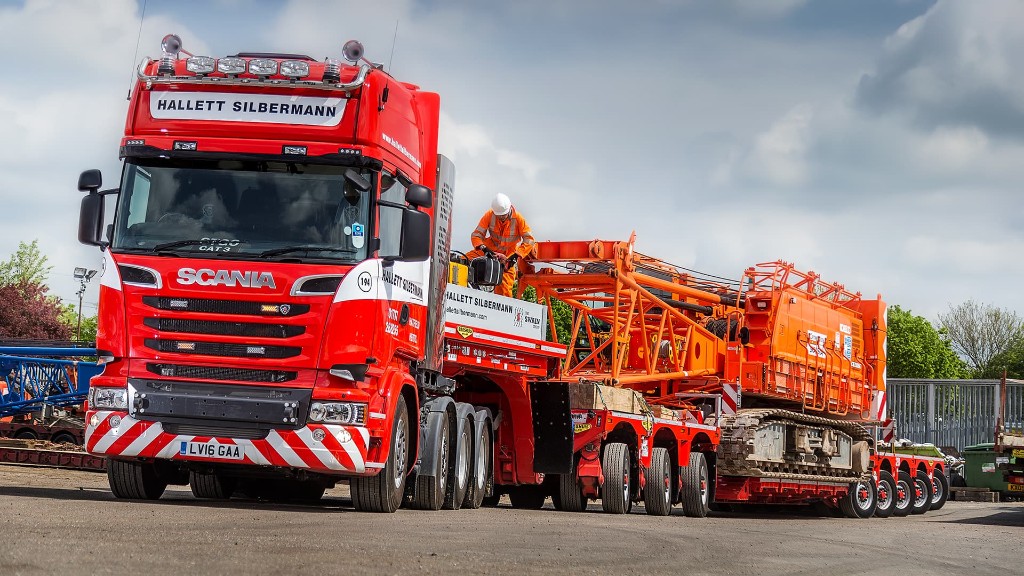

3+5-axle low loader dolly
combination PL2 HD

High payload

Buying a 3+5 dolly low loader?

This low loader is the best choice for extremely heavy loads. Due to its many advantages, you can distinguish yourself from other operators. The robust construction gives you a low loader with a long service life.

Ask us
your question!

Determine
your target price

General
specifications

  • 1x Extendable
  • Pendular axles (PL2)
  • 285/70 R19.5 Tires
  • Movable detachable neck
  • Linkable outer- or central beam(s)
  • Load capacity app. 85T
  • Linkable 3 axle dolly

Technical
specifications

  • Kingpin load 25T
  • Bogie load 96T
  • Tare weight ca.35,4T
  • Loading height 530mm
  • Bed lenght 8000mm
  • Extension 5500mm
  • Total extended trailer lenght 29740mm
Specification sheet

Related
products

2+5 PL2 HD dolly low loader

This 5-axle low loader dolly combination, with a 2-axle removable dolly, has the highest payload of its kind with a high axle load and low tare weight. A 600 mm stroke and a wide crane arm recess make this low loader unique.

2+4 PL2 HD dolly low loader

This 4-axle low loader dolly combination, with a 2-axle removable dolly, has the highest payload of its kind with a high axle load and a low tare weight. Its 600 mm stroke and a wide crane arm recess, make this low loader unique.

1+5 PL2 HD dolly low loader

This low loader has a 5-axle bogie with a fixed 1-axle dolly at the front. The dolly ensures an ideal weight distribution of the load. The trailer is also very easy to operate and its robust construction means that it has a long service life.

Innovations
and techniques

Paint system

The anti-corrosion protection of a trailer is essential, you cannot simply do it 'again', it has to be done right first time!

PL2 Pendle axles

Our PL2 pendle axles are of high quality. Thanks to the latest computer and production technologies, we have been able to build our pendle axles stronger and lighter.

Dollies

We have designed a number of dollies for use in combination with our low-loaders. We supply the dolly in several variants, jeep dolly, fixed or removable dolly between neck and low bed.
