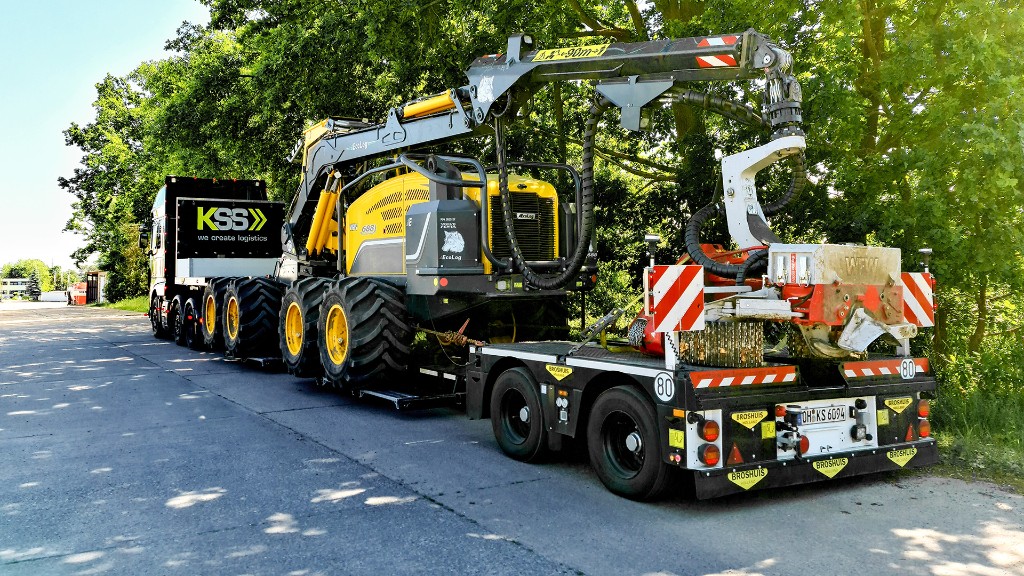

2-axle SL2
agri low loader

SL2 axles provide higher axle loads and a larger steering angle

Buying an agri low loader?

Thanks to the SL2 suspension, this low loader has a high axle load, a large steering angle and the lowest axle set in its class. Ideal for transporting agricultural machinery and vehicles.

Ask us
your question!

General
specifications

  • 1x extendable
  • Independent suspension (SL2)
  • 245/70 R17.5 tires
  • Movable detachable neck
  • Centre beam
  • Load capacity app. 30 t

Technical
specifications

  • Fifth wheel load 18 t
  • Bogie load 24 t
  • Tare weight ca.12 t
  • Loading height 370 mm
  • Bed lenght 6,475 mm
  • Extension 4,750 mm
  • Total extended trailer lenght 17,805 mm
