5-axle hydrau­lically steered
construction semi low loader with ramps

For heavy earth-moving machines

Looking for a 5-axle construction semi?

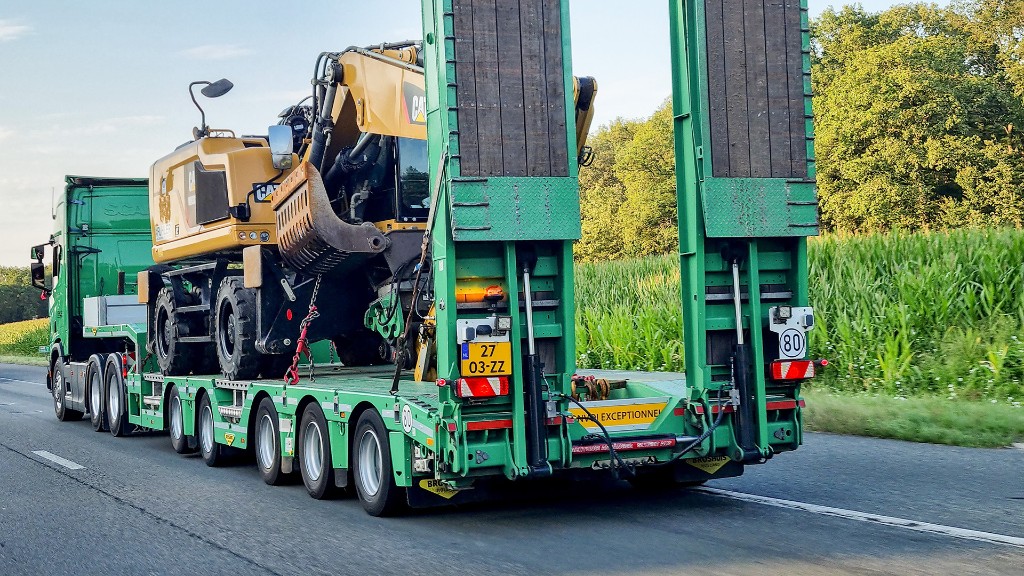

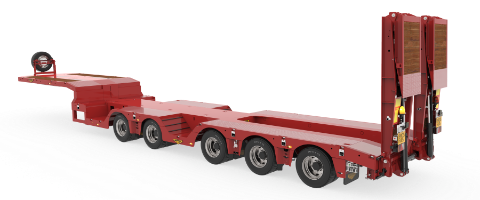

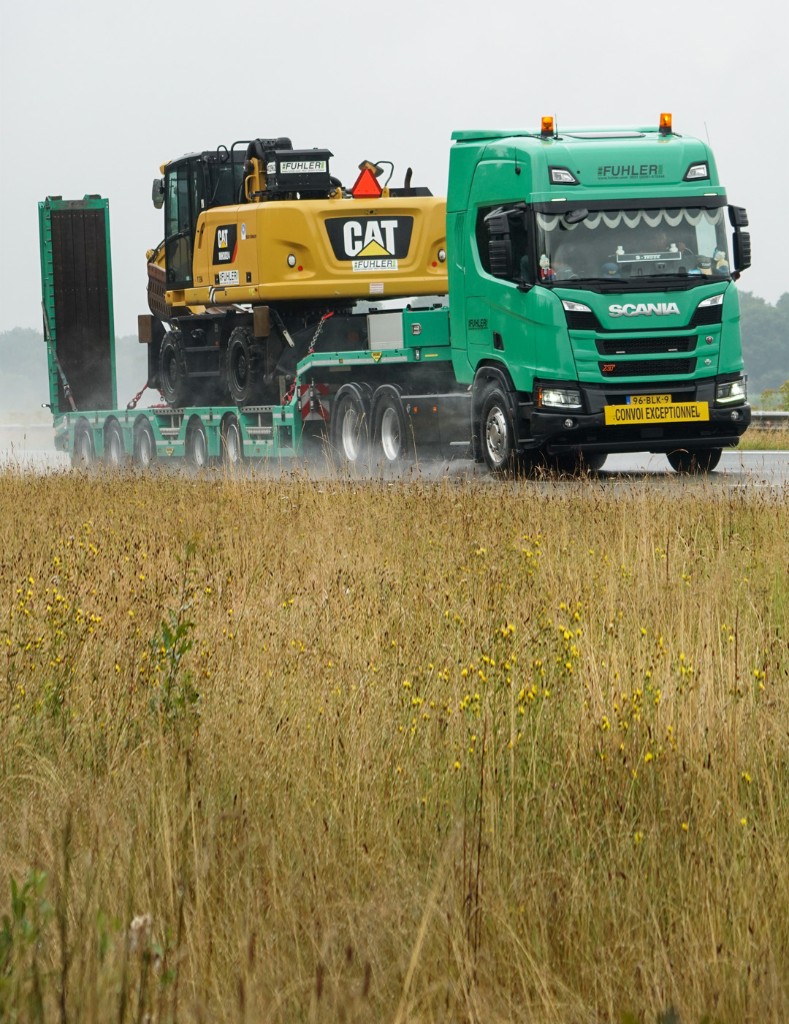

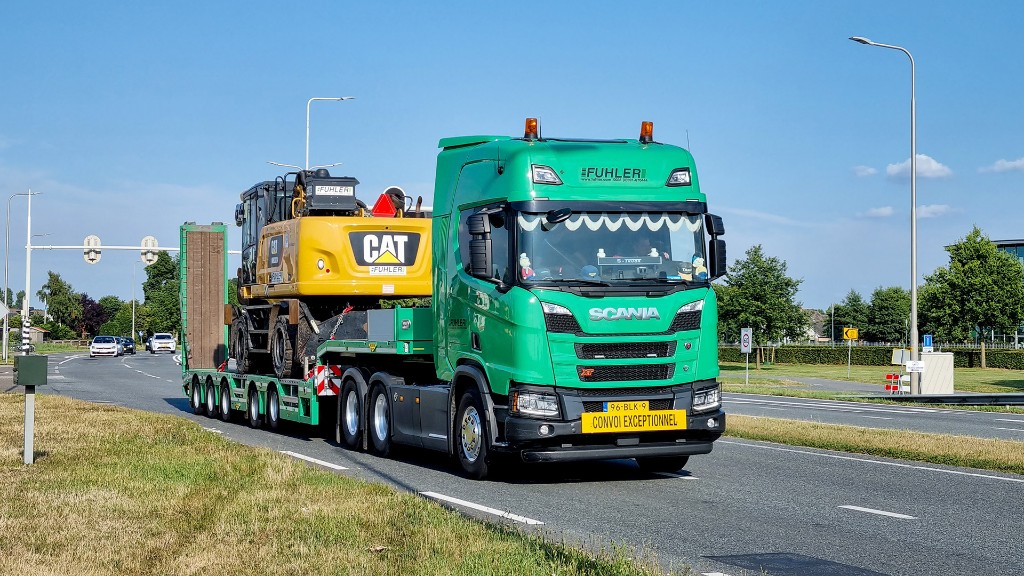

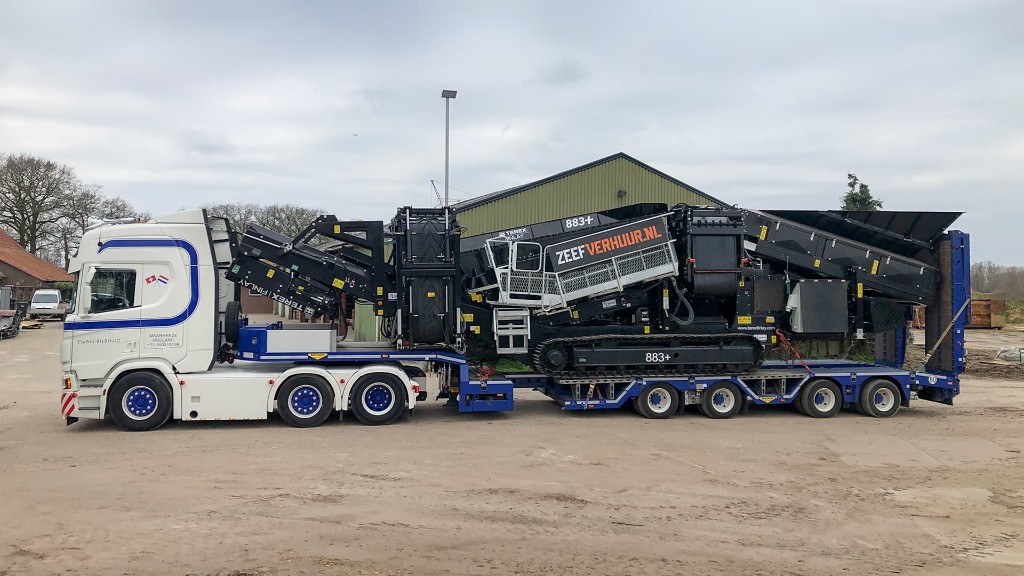

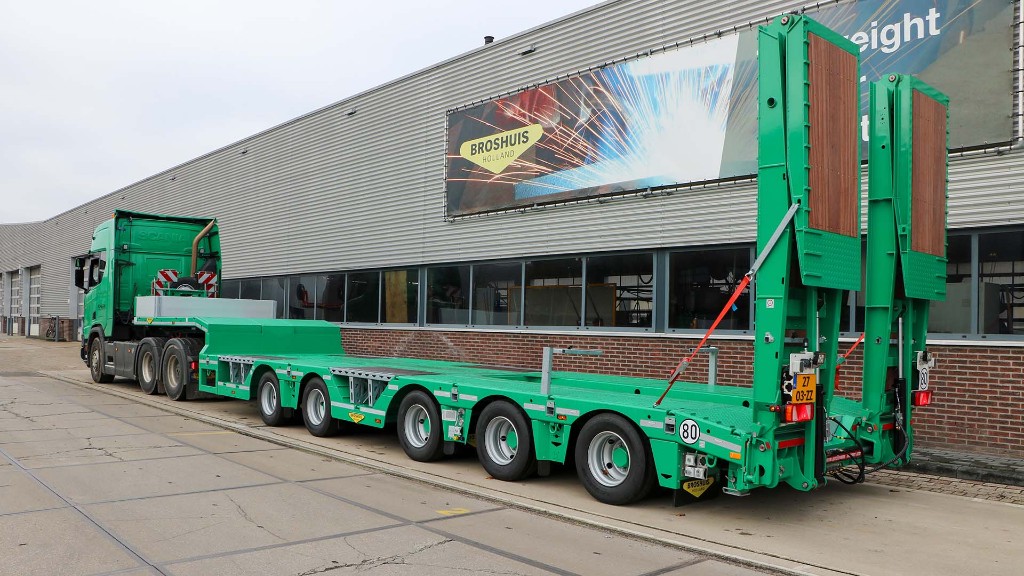

The 5-axle hydraulically steered construction semi low loader is versatile, thanks to the ramps, crane arm recess and wheel wells. Thanks to its robust construction, this trailer has a long service life.

Ask us
your question!

Determine
your target price

General
specifications

  • 1x Extendable
  • Airsuspension hydr. steered
  • 245/70 R17.5 Tires
  • Fixed neck
  • Load capacity app. 55T
  • Double wheel well - Crane arm recess - Hydr. ramps

Technical
specifications

  • Kingpin load 23T
  • Bogie load 50T
  • Tare weight ca.16,8T
  • Platform height 895mm
  • Extension 3600mm
  • Total extended lenght 18335mm
Specification sheet

Related
products

5-axle semi low loader triple extender

This 5-axle hydraulically-steered semi low loader is a triple extender. This allows the trailer to reach an overall length of 40 meters. Due to the hydraulic steering, the trailer is still highly manoeuvrable.

4-axle construction semi low loader with ramps

This 4-axle hydraulically steered construction semi low loader is single extendable and hydraulic ramps, wheel wells and crane arm recess. This makes this trailer the most versatile of its kind.

4-axle semi low loader with ramps

This 4-axle hydraulically steered semi low loader is single extendable and has hydraulic ramps. Thanks to the hydraulic steering, the trailer follows the truck very accurately.

Innovations
and techniques

Wheel wells

A wheel well is a recess in the loading floor or a lowering of the loading floor. Because the tyres of vehicles are lowered, the transport height can easily be reduced.

Crane arm recess

A crane arm recess is a recess where the crane arm can easily be placed during the transport of a machine to reduce height.

Hydraulic ramps

To allow the user to work with an even safer trailer, we have designed four types of ramps that fully meet our high safety and quality requirements.
