6-axle PL2 pendle
axle ballast semi low loader
Not extendable and especially for transporting crane ballast
Looking for a 6-axle pendle axle ballast semi?This 6-axle ballast semi low loader is non-extendable and specially designed for the transport of crane ballast and boom parts. You can work safely thanks to the low loading floor. The PL2 pendle axles guarantee a strong trailer with a high payload.

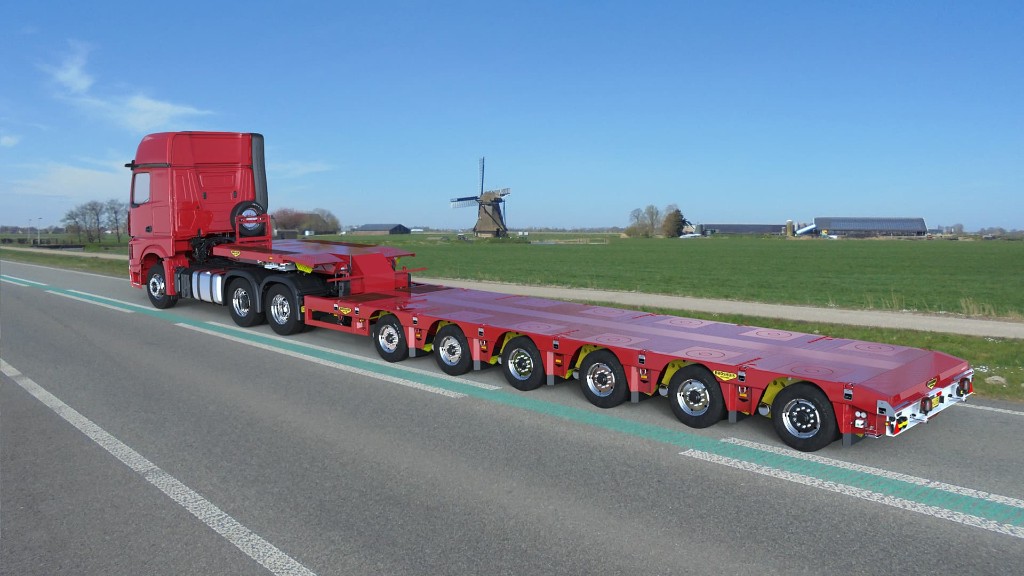

6-axle pendle axle ballast semi low loader PL2

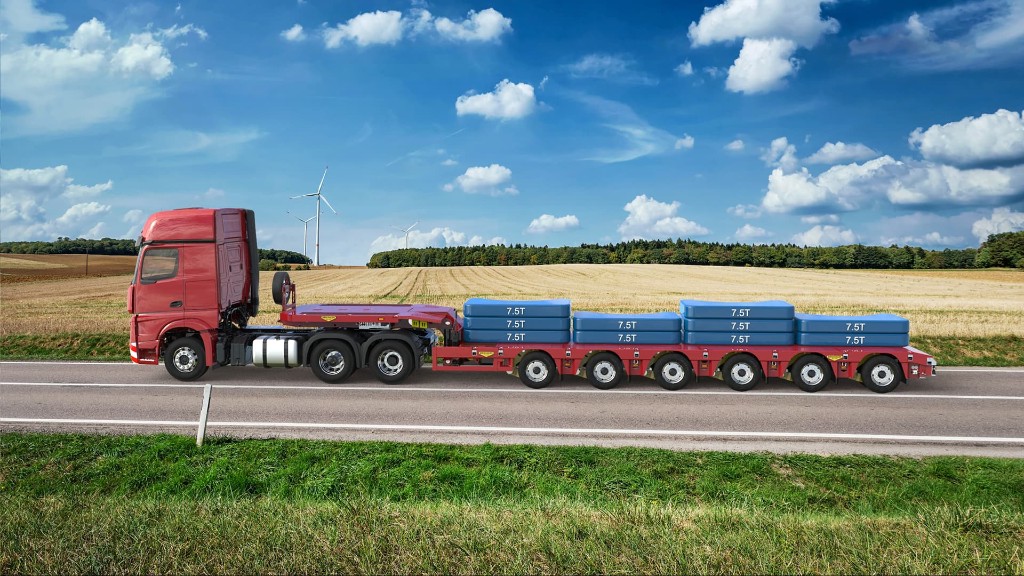

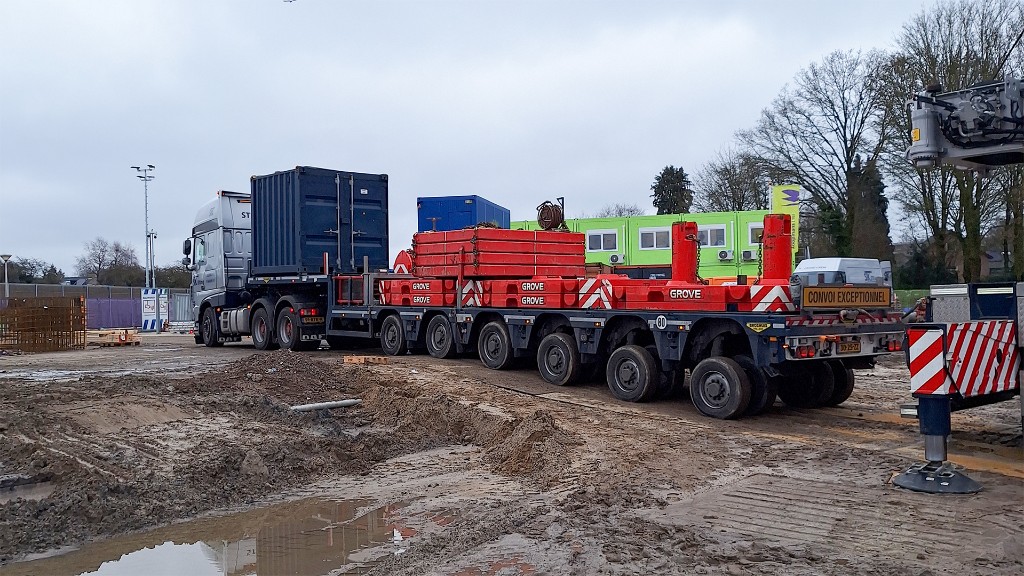

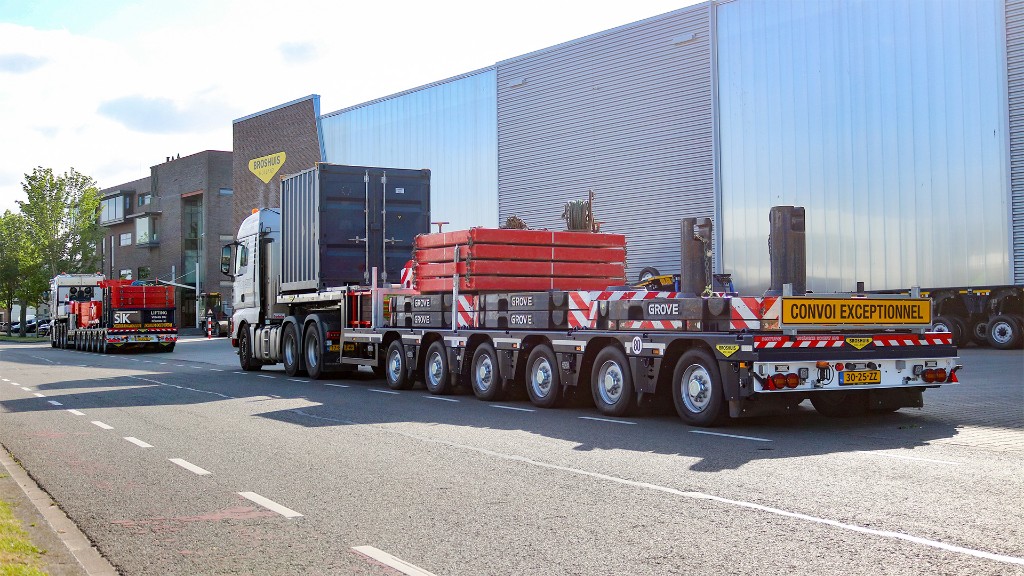

The transport of crane ballast and boom parts is a specialist occupation. Because the load is often known in advance, the trailer can be constructed specifically for it. We have designed a 6-axle pendle axle semi low loader for the transport of crane ballast and boom parts. This non-extendable trailer has a low loading floor, which allows the user to work more safely, without requiring fall protection. In addition, the multifunctional use of the semi low loader has been taken into account in the design. This also makes it easy to carry return-loads.
Our 6-axle ballast (counterweight) semi trailer is set up in such a way that the loaded combination falls within the 100-tonne exemption. This makes you a lot more flexible.
- Non extendable
- Pendular axles (PL2)
- 245/70 R17.5 Tires
- Fixed neck
- Load capacity app. 80T
- Kingpin load 25T
- Bogie load 72T
- Tare weight ca.17,6T
- Platform height 870mm
- Non extendable
- Total lenght 16600mm
5-axle PL2 semi low loader
This 5-axle pendle axle semi low loader falls within the legal combination length when retracted making this a popular model in the Broshuis range. A permit is therefore not necessary. With a high axle capacity and low tare weight, the semi trailer has the highest payload of its kind.
8-axle PL2 semi low loader (2+6)
This 8-axle pendle axle semi low-loader is designed as a 2 + 6 version. This version extends to 34 meters. The PL2 pendle axles ensure a strong trailer, with a high payload.
10-axle PL2 semi low loader (3+7)
This 10-axle pendle axle semi low loader is designed as a 3 + 7 version. This variant is has a single extension. The PL2 pendle axles give you a strong trailer with a high payload.
PL2 Pendle axles
Our PL2 pendle axles are of high quality. Thanks to the latest computer and production technologies, we have been able to build our pendle axles stronger and lighter.
The anti-corrosion protection of a trailer is essential, you cannot simply do it 'again', it has to be done right first time!
