Looking for a 3-axle construction semi?This 3-axle self-tracking construction semi low loader has double wheel wells and a crane arm recess. This makes the trailer extremely flexible in use. Because the front wheel well is extra large, vehicles with various wheelbases can be transported.

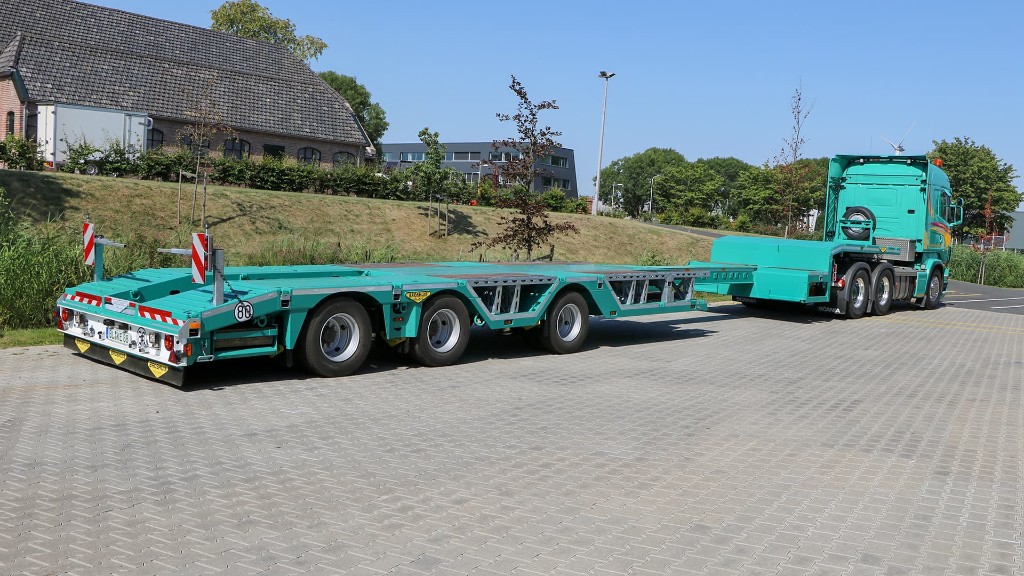

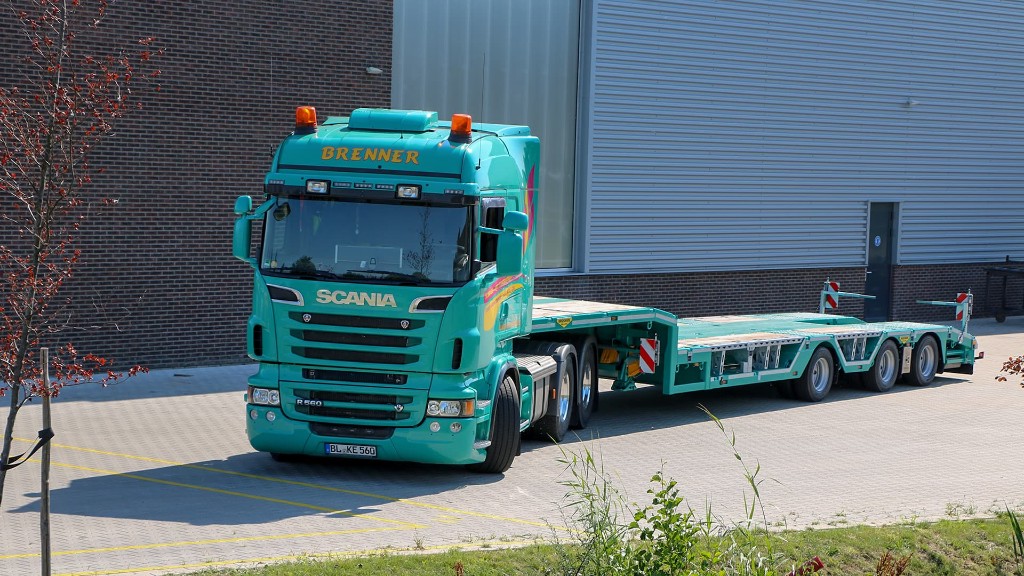

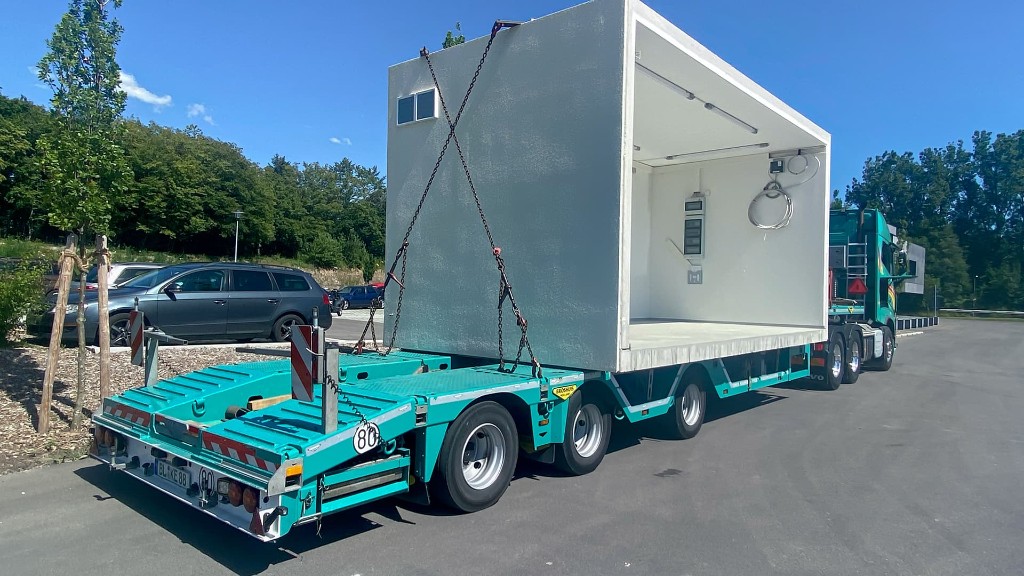

3-Axle, self tracking construction semi low loader
We have designed this special semi low loader for the transport of various types of construction vehicles. Thanks to the double wheel well, almost all types of wheel loaders can be transported on this trailer. The front wheel well is extra large so that it is also possible to transport vehicles with diverse wheelbases. There is also a recess on the crane arm at the rear of the trailer. This allows the boom/crane arm to be transported lower. We are known as a specialist manufacturer of semi trailers with wheel wells. We owe this to many years of experience in the construction of this type of semi low loader trailer. We do this in collaboration with a number of construction equipment manufacturers.
- 1x Extendable
- Airsuspension selftracking
- 245/70 R17.5 Tires
- Fixed neck
- Load capacity app. 40T
- Double wheel well - Crane arm recess
- Kingpin load 18T
- Bogie load 30T
- Tare weight ca.10T
- Platform height 870mm
- Extension 3400mm
- Total extended lenght 16750mm
3-axle construction semi low loader
This three axle self-tracking construction semi low loader is equipped with wheel wells and a crane arm recess. This allows you to transport almost all construction machines up to 39 tons.
4-axle construction semi low loader
This 4-axle self tracking construction semi low loader is equipped with wheel wells and a crane arm recess. This allows you to transport almost all types of construction machines up to 50 tons.
4-axle construction semi low loader with ramps
This 4-axle self tracking construction semi low loader is equipped with double wheel wells, a crane arm recess and ramps. By extending the trailer, the front wheel well can be made larger. With this you can transport almost all types of construction machines.
The anti-corrosion protection of a trailer is essential, you cannot simply do it 'again', it has to be done right first time!
A wheel well is a recess in the loading floor or a lowering of the loading floor. Because the tyres of vehicles are lowered, the transport height can easily be reduced.
Crane arm recess
A crane arm recess is a recess where the crane arm can easily be placed during the transport of a machine to reduce height.
