Looking for a 4-axle self tracking semi?This self tracking trailer has an extremely low loading floor, allowing you to transport higher loads. Because the trailer can extend, it provides a maximum length of 19.5 meters.

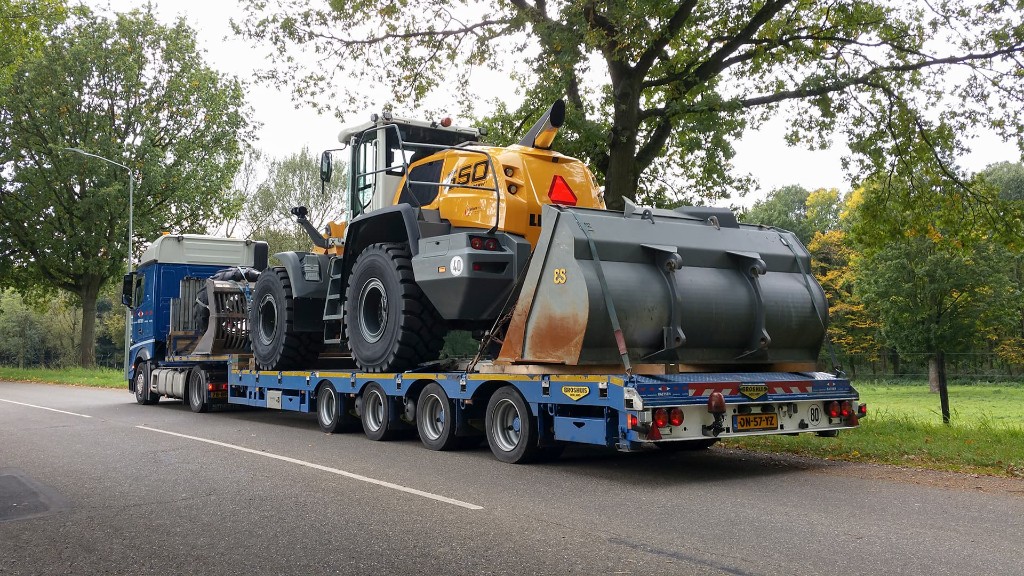

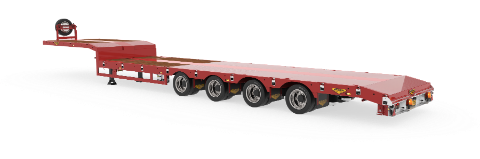

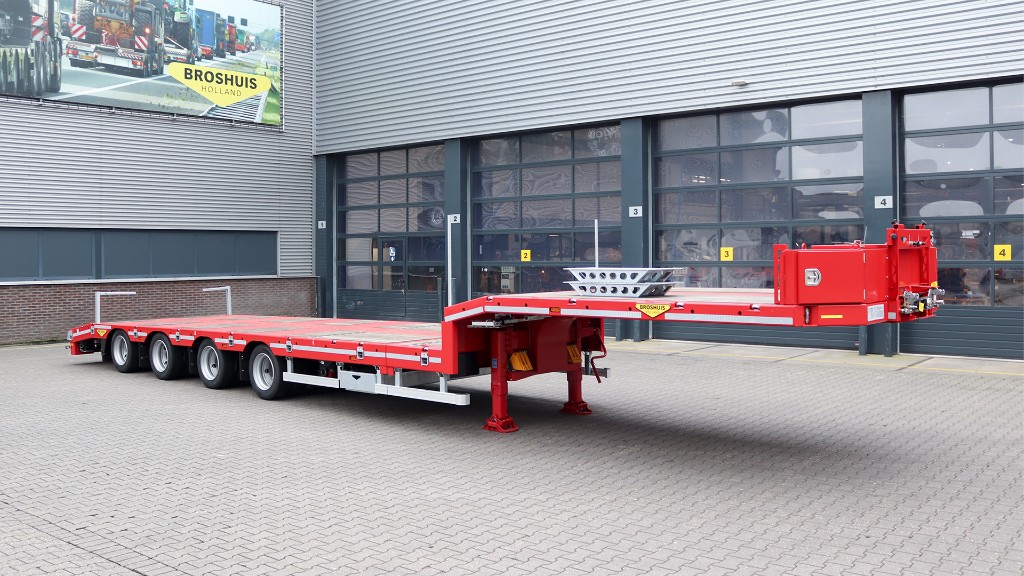

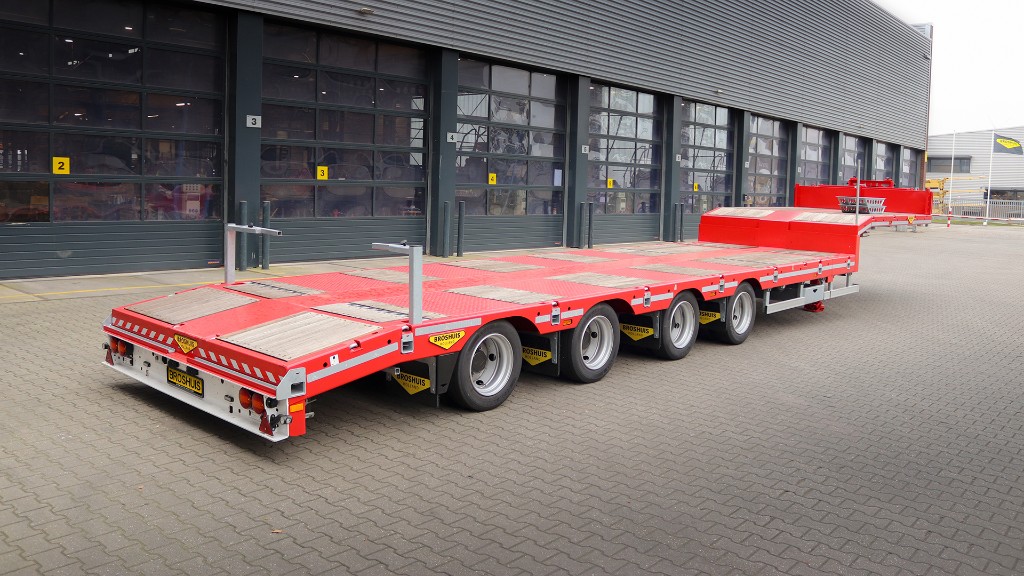

4-Axle low self-tracking semi low loader on 205 tires
The 4-axle self-tracking semi low loader on 205 tyres is a popular semi trailer for transporting high loads of up to 40 tons. The choice of 205 tires provides a maximum of 8 tons of payload per axle line. This 4-axle trailer has a low loading floor height that is just 780mm from the ground. The trailer is single extendable and can reach a length of 19.5 meters.
- 1x Extendable
- Airsuspension selftracking
- 205/65 R17.5 Tires
- Fixed neck
- Load capacity app. 40T
- Kingpin load 18T
- Bogie load 32T
- Tare weight ca.10,5T
- Platform height 780mm
- Extension 6400mm
- Total extended lenght 19480mm

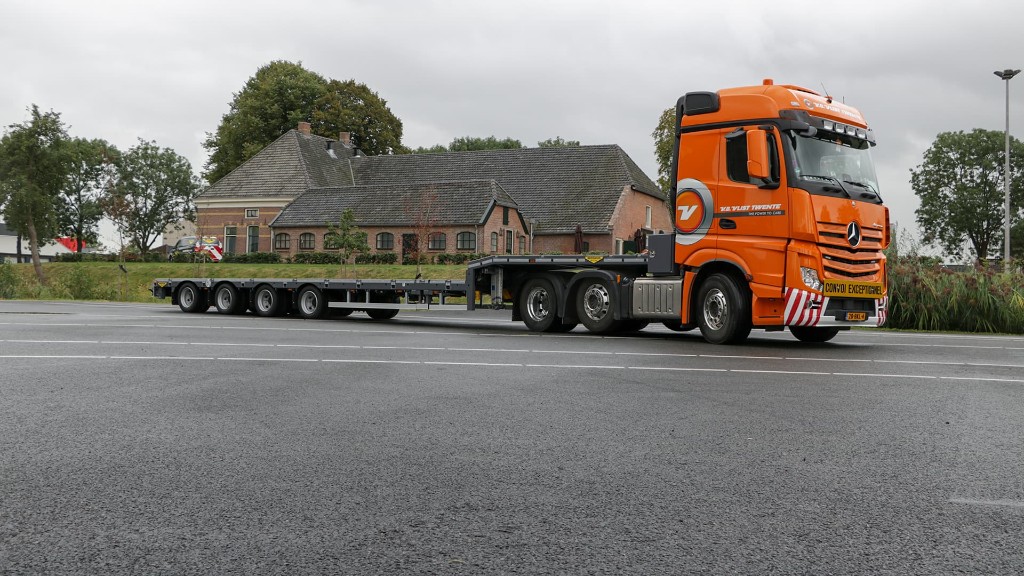

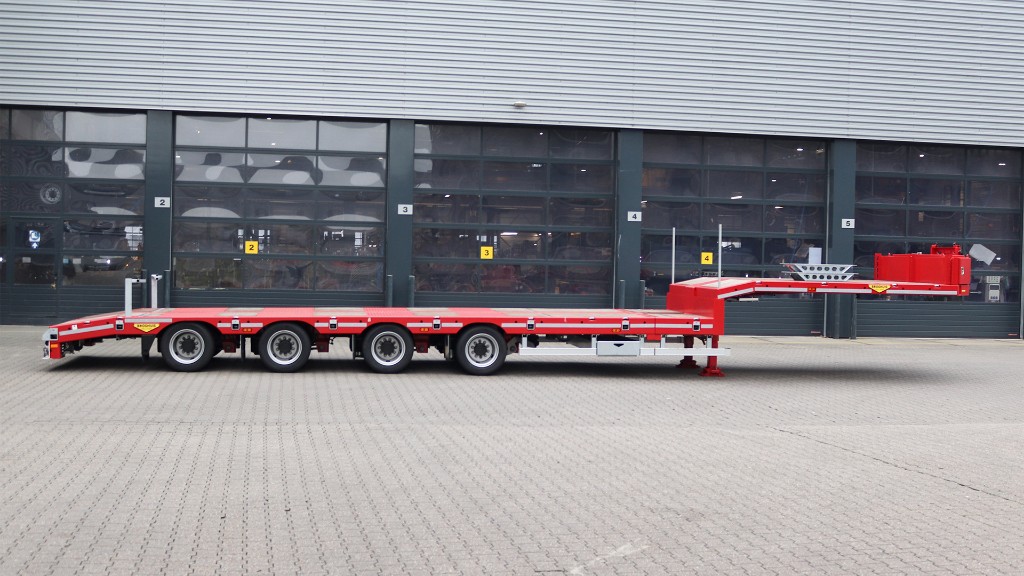

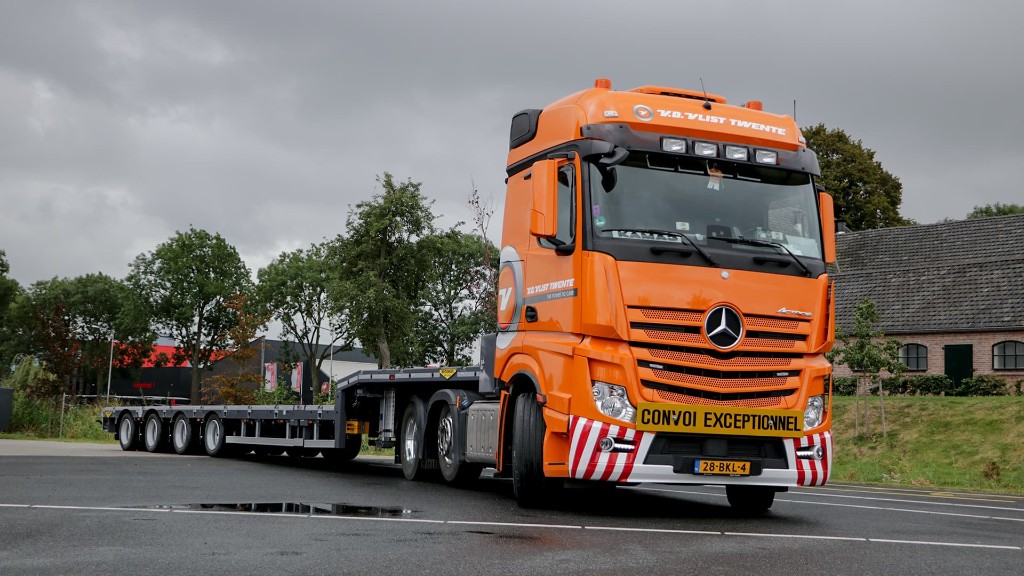

4-axle semi low loader
This 4-axle self tracking semi low loader is single extendable and can reach a length of 19.5 meters. Thanks to its sturdy construction, the trailer is extremely durable. It been developed with great attention to detail applied throughout the design and development process.
4-axle semi low loader with ECO ramp
This 4-axle self-tracking semi low loader has a fuel-saving ECO-ramp. This allows the ramp to be used as a loading floor.

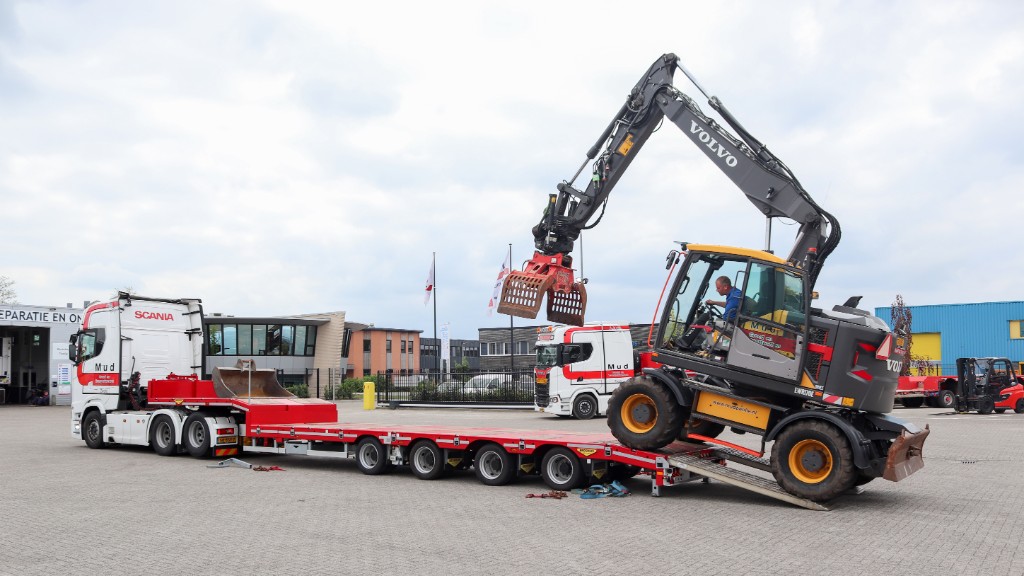

4-axle semi low loader with ramps
This 4-axle self-tracking semi low loader has double-acting hydraulic ramps. This allows you to load and unload tracked and wheeled vehicles with ease. Because the trailer is single extendable, it can reach up to 19.5 meters.
