4-axle self-tracking Plant
semi low loader non-extendable
Not extendable but has great loading capacity

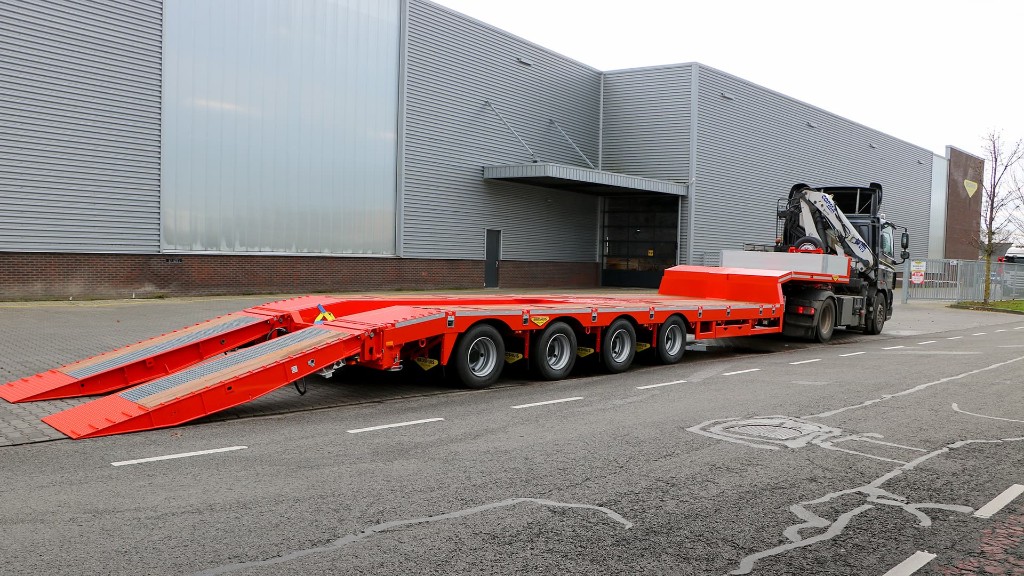

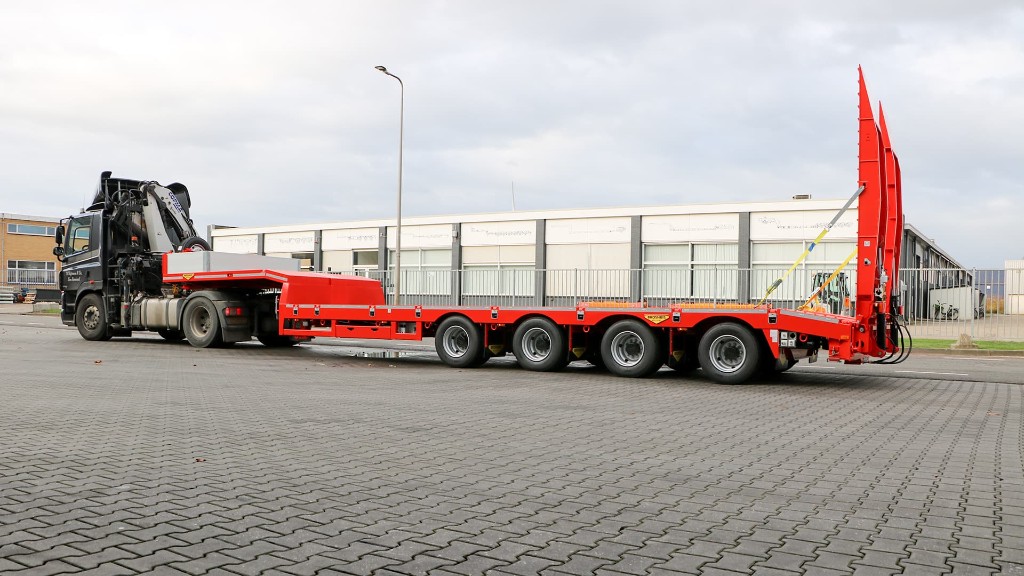

Looking for a 4-axle plant semi?This 4-axle self tracking plant semi low loader is non-extendable and very strong. Thanks to the ramps, construction plant can be loaded safely and easily.
4-Axle self-tracking plant semi low loader
This construction plant semi low loader has been developed for the specific purpose of transporting this type of equipment. It offers a very strong solution for several small machines or for one large machine. The 25 tonne neck allows you to maximise your payload. Almost all of the loading floor is equipped with hardwood. This means that machines have more grip and that you can easily load tracked vehicles. The trailer is not extendable but has great strength.
- Non extendable
- Airsuspension selftracking
- 245/70 R17.5 Tires
- Fixed neck
- Load capacity app. 50T
- Crane arm recess - Hydr. ramps
- Kingpin load 25T
- Bogie load 40T
- Tare weight ca.14,5T
- Platform height 905mm
- Non extendable
- Total lenght 13450mm
4-axle construction semi low loader
This 4-axle self tracking construction semi low loader is equipped with wheel wells and a crane arm recess. This allows you to transport almost all types of construction machines up to 50 tons.
4-axle construction semi low loader with ramps
This 4-axle self tracking construction semi low loader is equipped with double wheel wells, a crane arm recess and ramps. By extending the trailer, the front wheel well can be made larger. With this you can transport almost all types of construction machines.
4-axle construction semi low loader (205 tires)
This low 4-axle self tracking steered construction semi low loader is equipped with small tyres. This allows taller construction machines to be loaded. The trailer has double wheel wells and a crane arm recess. By extending the trailer, the front wheel well can be made larger.
The anti-corrosion protection of a trailer is essential, you cannot simply do it 'again', it has to be done right first time!
Conventional axle systems
We often mount conventional axles, also called through axles, on our trailers. We have these in an air-sprung version and also hydraulically-sprung.
The loader crane is ideal in many ways. As a haulier, you have flexibility because you can load and unload where and when you want and you are not dependent on a third party.
To allow the user to work with an even safer trailer, we have designed four types of ramps that fully meet our high safety and quality requirements.
