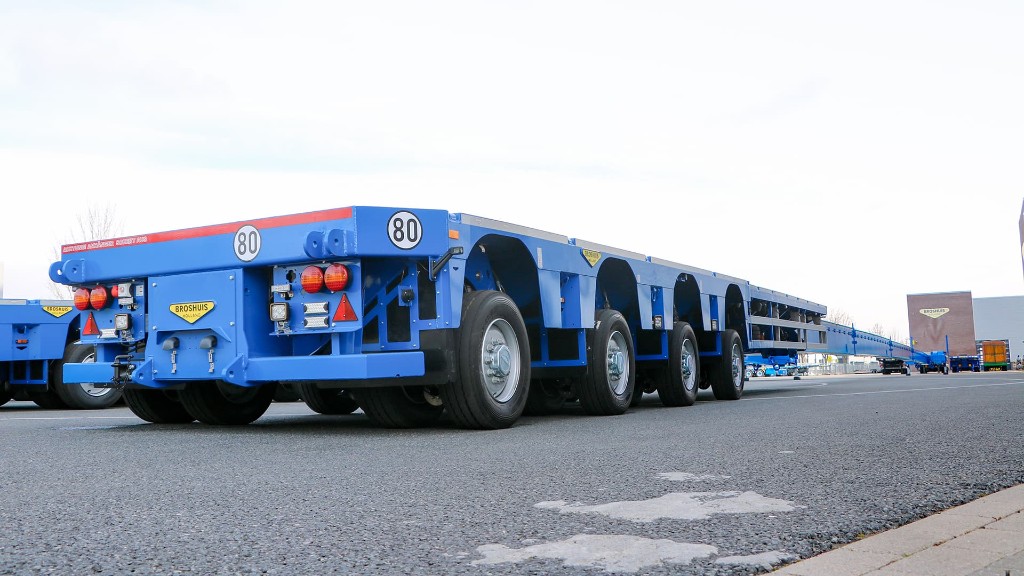

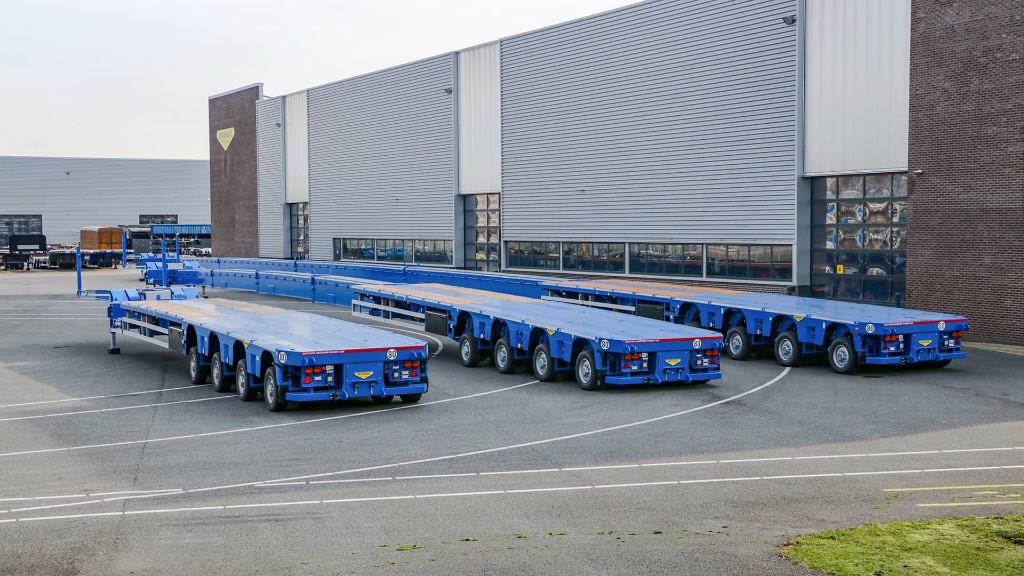

4-axle Quattro Blade TrailerThe 4-axle Quatro Trailer has been specially designed to use the 'Sliding and lifting system'. The trailer can reach a length of up to 69 meters.
The solution for extremely long blades

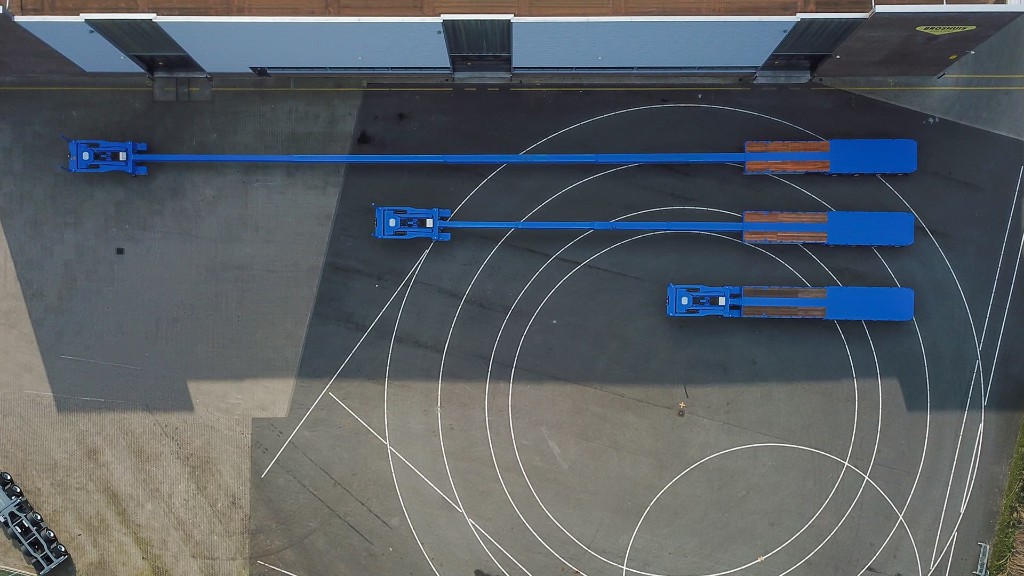

The 4-axle Quatro Blade Trailer is specially designed to use the sliding and lifting system'. Thanks to the sliding system, the trailer can still be partially retracted when the blade is loaded, which shortens the wheelbase and achieves a better turning radius. The shorter wheelbase makes it possible to take tighter turns.
The lifting system makes it possible to raise the tip of the blade to a height of 10 meters. This allows the blade to swing over houses, trees and other street furniture without having to dismantle these objects thus not having to use longer alternative routes.
- 4x Extendable
- Hydraulic suspension
- Hydraulic steered
- Pendular axles (PL)
- 245/70 R17.5 Tires
- Load capacity app. 40T
- Kingpin load 30T
- Bogie load 48T
- Tare weight ca.40.2T
- Platform height 1.250mm
- Extension 49.100mm
- Total extended lenght 69.200mm
