Buying a new wing trailer?The 5-axle Triple Wing Carrier is specially designed to transport steel tower sections in addition to blades. The trailer is multifunctional for the wind industry.
5-Axle three times extendable wing trailer

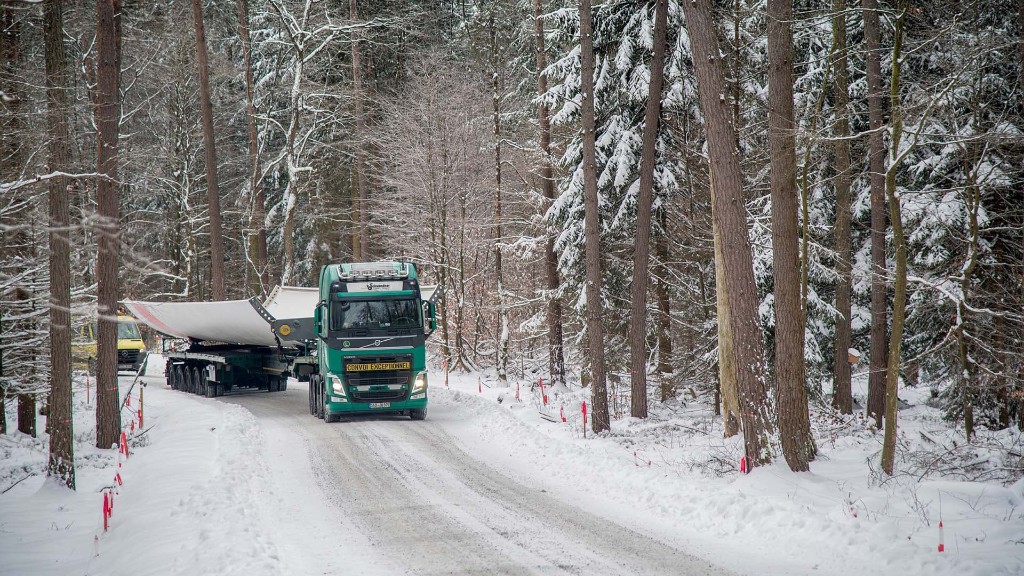

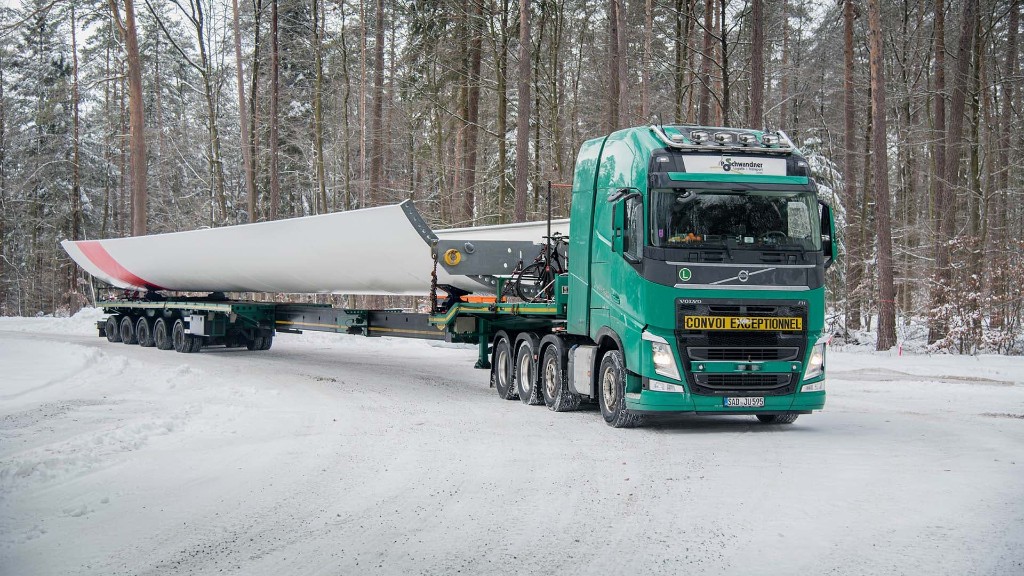

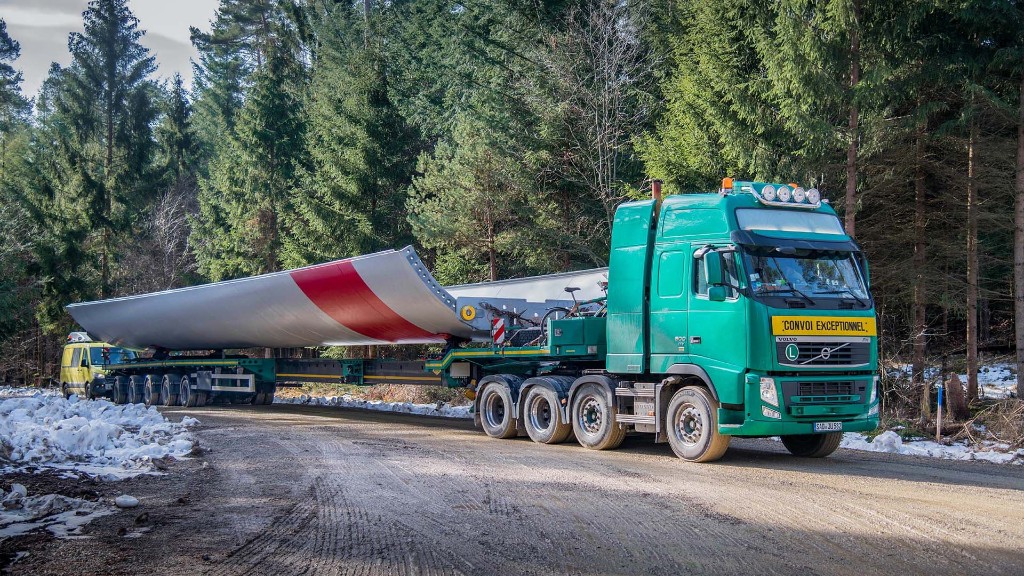

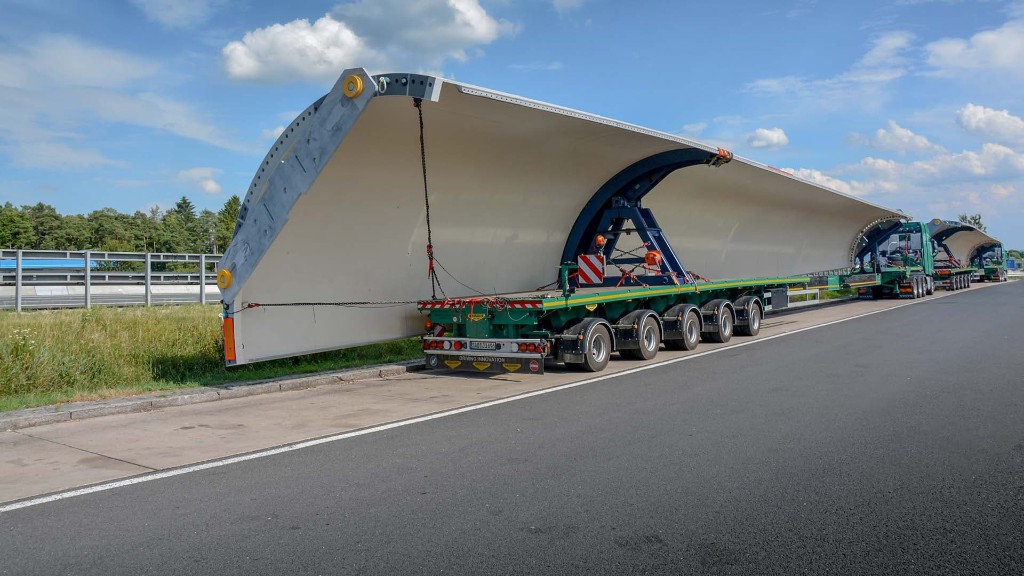

The 5-axle Triple Wing Carrier (TWC) is specially designed to transport steel tower sections in addition to the blades. This makes your trailer multifunctional for the wind industry. In addition to transports for the wind industry, this trailer can also be used for other types of loads. In short, a trailer with a high return on investment (ROI).
- 3x Extendable
- Hydraulic steered
- Beam axle
- 245/70 R17.5 Tires
- Load capacity app. 50T
- Kingpin load 22.5T
- Bogie load 50T
- Tare weight ca.21.8T
- Platform height 1.250mm
- Extension 34.500mm
- Total extended lenght 52.910mm
- Convertible steering
4-axle Triple Wing Carrier
This trailer has been developed for the transport of wind turbine blades, and can be extended 3 times and can reach a length of 53 m. Thanks to the hydraulic steering, the trailer can still reach places that are often difficult to reach with conventional equipment.
3-axle Quatro Blade Trailer
This blade trailer on pendle axles can extend four times and can reach a length of up to 69 m. The trailer has been specially developed for transporting extremely long blades (wings) for wind turbines.
4-axle Quatro Blade Trailer
The 4-axle Quatro Blade Trailer is specially designed to use the 'Sliding and lifting system'. The lifting and sliding system allows the trailer to be partially retracted when the blade is loaded, which shortens the wheelbase and improves the turning radius.
The anti-corrosion protection of a trailer is essential, you cannot simply do it 'again', it has to be done right first time!
Conventional axle systems
We often mount conventional axles, also called through axles, on our trailers. We have these in an air-sprung version and also hydraulically-sprung.
Solutions for Windturbine transport
We have designed various trailers together with wind turbine manufacturers for the transport of wind turbine components. As a result, your trailer complies with the regulations and industry developments.
