8-Axle hydrau­lically
steered semi low loader

Proven quality for heavy work

Looking for an 8 axle semi low loader?

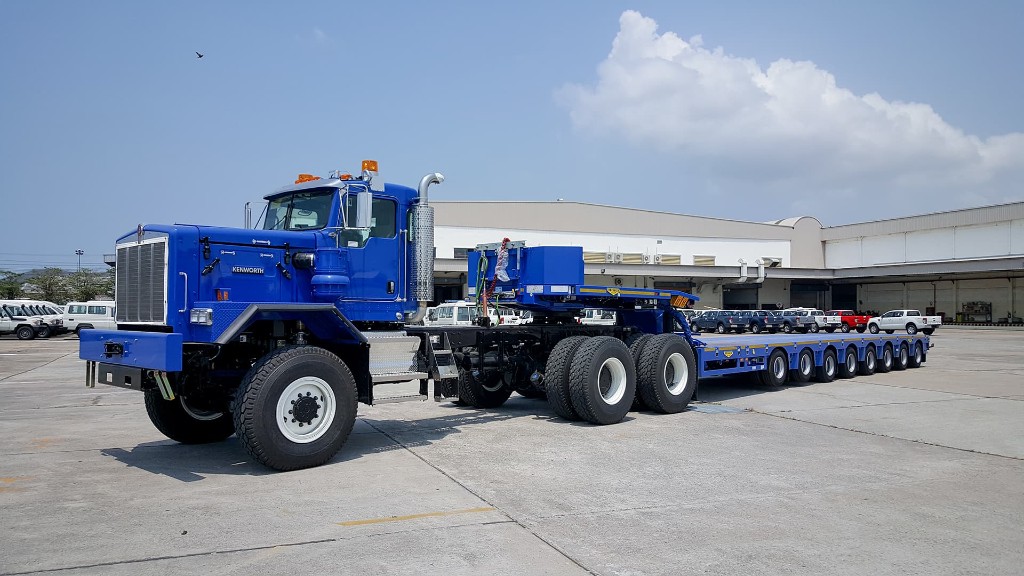

The 8-axle single extendable semi low loader can transport extreme lengths with relative ease. In combination with the hydraulic steering, the trailer is highly manoeuvrable.

Ask us
your question!

Determine
your target price

General
specifications

  • 1x Extendable
  • Hydr. suspension hydr. steered
  • 245/70 R17.5 Tires
  • Movable neck
  • Load capacity app. 85T

Technical
specifications

  • Kingpin load 30T
  • Bogie load 80T
  • Tare weight ca.23,5T
  • Platform height 990mm
  • Extension 10000mm
  • Total extended lenght 27730mm
Specification sheet

Related
products

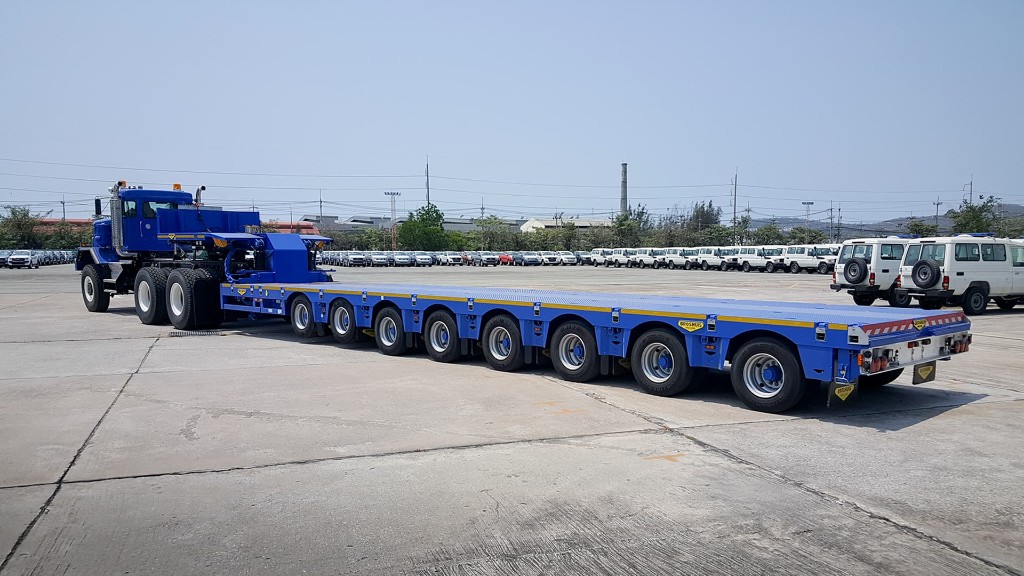

8-axle tower semi low loader double extender
