tower semi low loader double extender
Especially for long and heavy tower sections
looking for a 8 axle tower semi low loader?The eight-axle double-extendable tower trailer can easily transport large and heavy tower parts. The nacelle can also be transported on this durable semi-trailer.

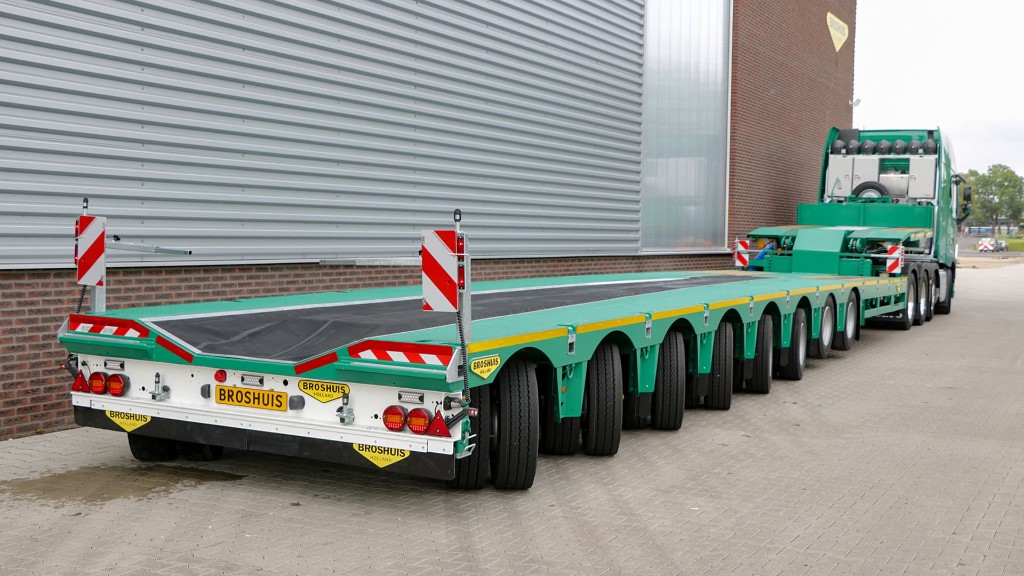

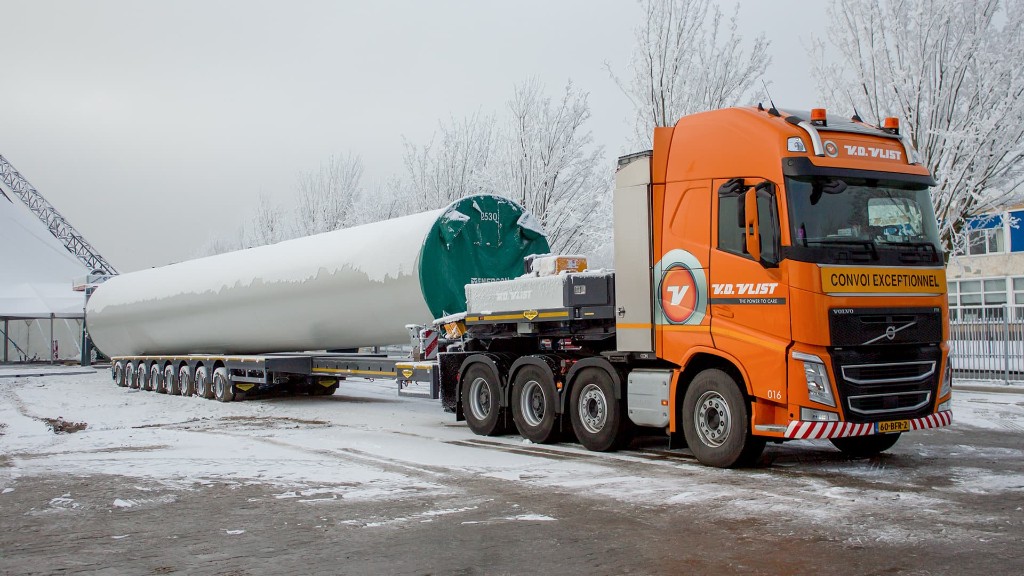

8-axle semi low loader for tower components

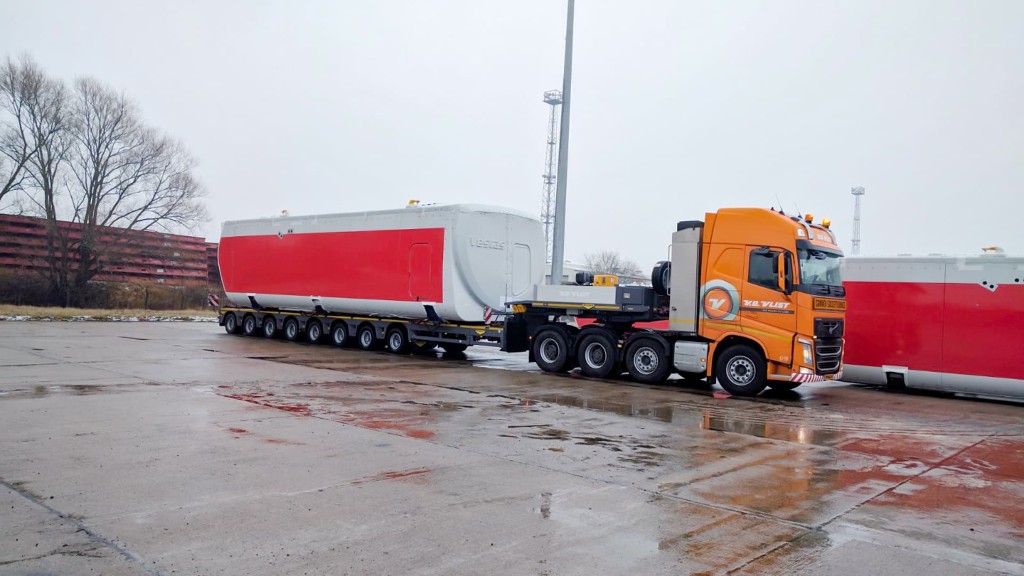

This 8-axle semi low-loader is designed for the transport of large wind turbine tower components. By extending the semi-trailer twice, a recess is created in the low bed. This recess (700mm loading floor height) ensures that you can transport the tower parts lower. Thanks to the stable hydraulic suspension, this semi-trailer is also able to transport the nacelles, making this multipurpose semi-trailer unique. Quality and safety were our two primary considerations in the design of this 8-axle semi low-loader.
- 2x Extendable
- Hydr. suspension hydr. steered
- 245/70 R17.5 Tires
- Movable neck
- Load capacity app. 80T
- Tower recess
- Kingpin load 30T
- Bogie load 80T
- Tare weight ca.29T
- Platform height 950mm
- Extension 22200mm
- Total extended lenght 40750mm
8-Axle semi low loader
This 8-axle hydraulically-steered semi low loader extends once. This allows the trailer to reach a length of approximately 28 meters. Thanks to the hydraulic steering, the trailer is highly manoeuvrable.
7-axle semi low loader double extender
This 7-axle hydraulically steered semi low loader is a double-extendable. This allows the trailer to reach a length of approximately 38 meters. Due to the hydraulic steering, the trailer remains highly manoeuvrable.
6-axle semi low loader double extender
This 6-axle hydraulically steered semi low loader is double extendable. This allows the trailer to reach a length of approximately 33 meters. Due to the hydraulic steering, the trailer remains highly manoeuvrable.
The anti-corrosion protection of a trailer is essential, you cannot simply do it 'again', it has to be done right first time!
Conventional axle systems
We often mount conventional axles, also called through axles, on our trailers. We have these in an air-sprung version and also hydraulically-sprung.
Our trailers are often equipped with a number of technical highlights that make the trailer unique. Thanks to these techniques, you can transport cargo with your trailer that others cannot. Here you will find an overview of our techniques that we apply to our trailers
