6-axle PL2 pendle
axle semi low loader

Specialist in building pendle axle semi low loaders

Looking for a 6-axle pendle axle semi?

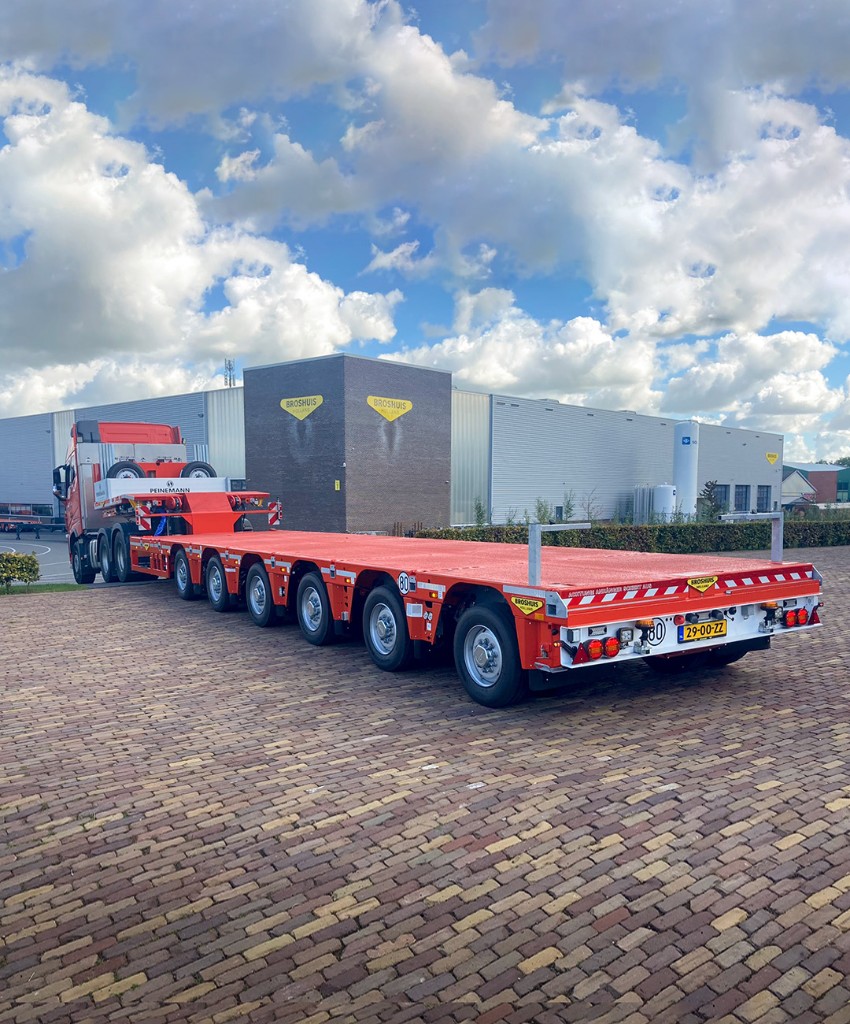

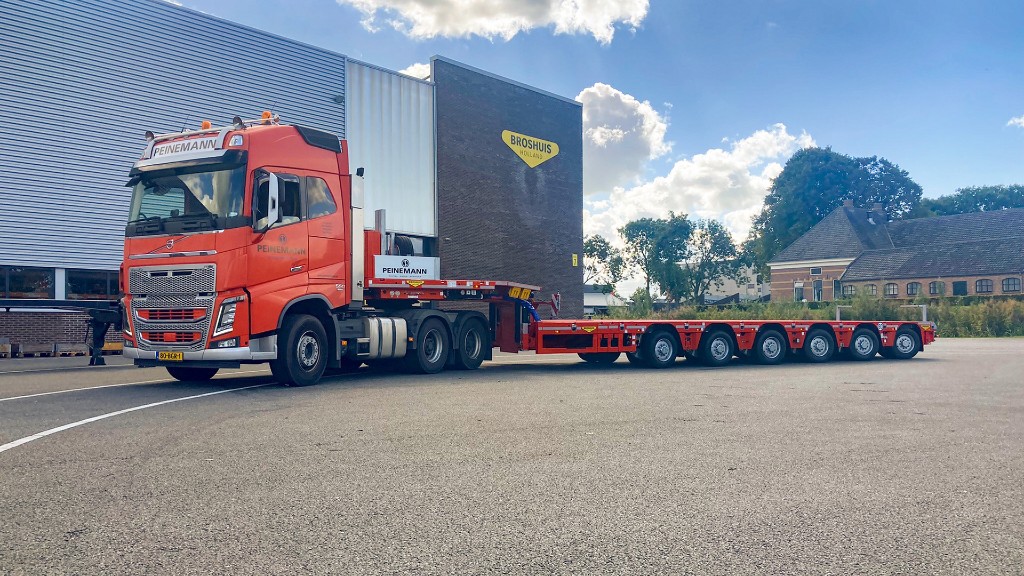

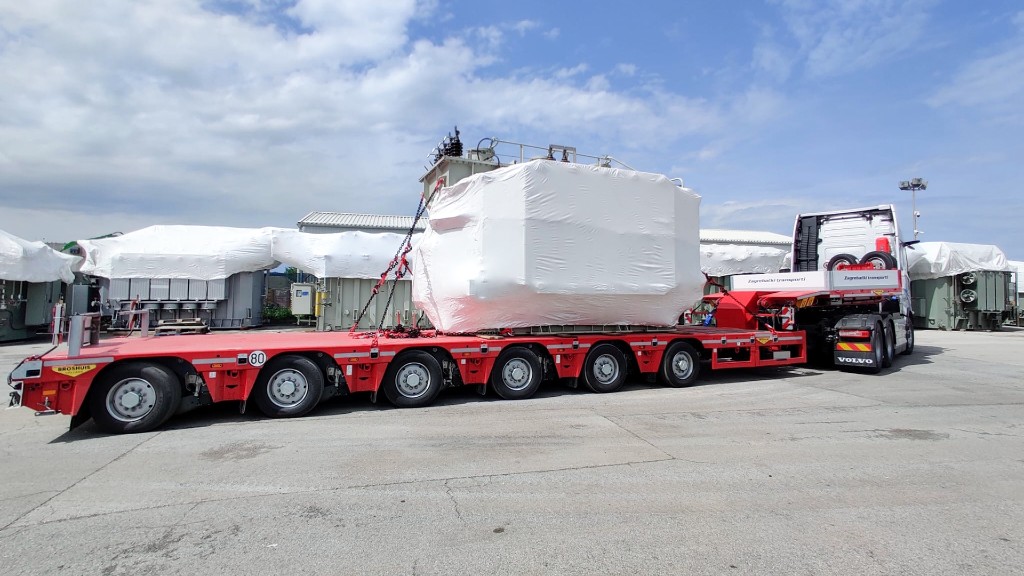

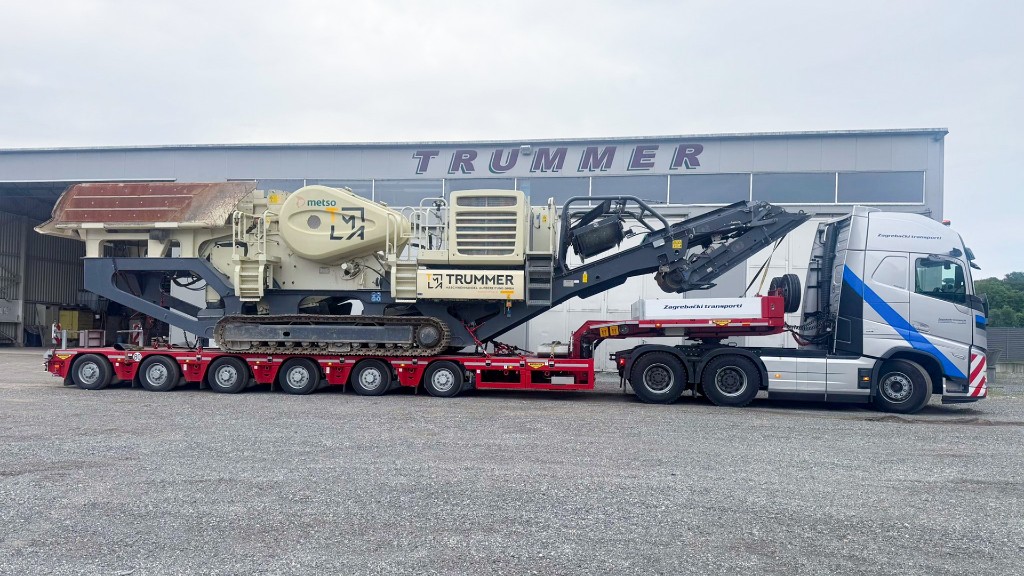

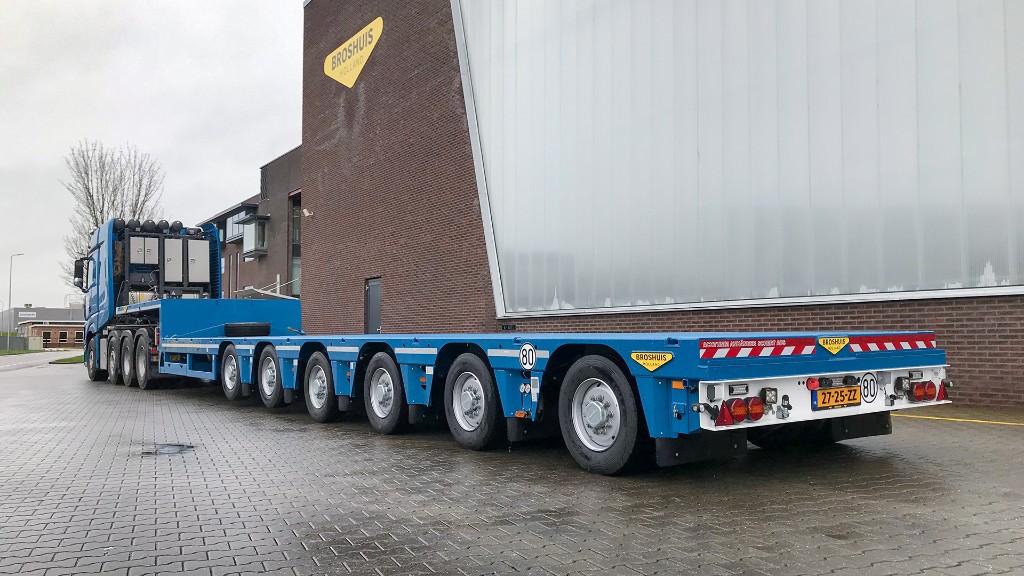

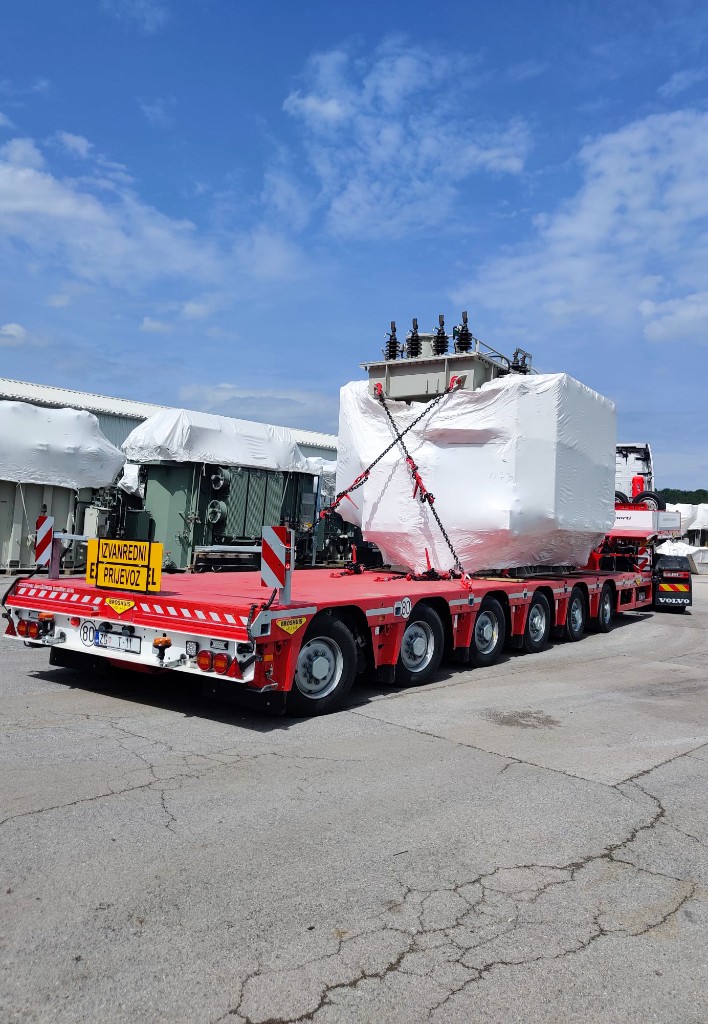

This 6-axle semi low loader has an extremely high payload due to its low weight and high axle capacity. Because the trailer is extendable, overlength cargo can also be accommodated.

Ask us
your question!

Determine
your target price

General
specifications

  • 1x Extendable
  • Pendular axles (PL2)
  • 245/70 R17.5 Tires
  • Movable neck
  • Load capacity app. 80T

Technical
specifications

  • Kingpin load 30T
  • Bogie load 72T
  • Tare weight ca.20,4T
  • Platform height 870mm
  • Extension 7850mm
  • Total extended lenght 22480mm
Specification sheet

Related
products

5-axle PL2 semi low loader

This 5-axle pendle axle semi low loader falls within the legal combination length when retracted making this a popular model in the Broshuis range. A permit is therefore not necessary. With a high axle capacity and low tare weight, the semi trailer has the highest payload of its kind.

6-axle PL2 ballast semi low loader

This 6-axle ballast semi low loader is non-extendable and specially designed for the transport of crane ballast and boom parts. You can work safely thanks to the low loading floor. The PL2 pendle axles guarantee a strong trailer with a high payload.

8-axle PL2 semi low loader (2+6)

This 8-axle pendle axle semi low-loader is designed as a 2 + 6 version. This version extends to 34 meters. The PL2 pendle axles ensure a strong trailer, with a high payload.

Innovations
and techniques

PL2 Pendle axles

Our PL2 pendle axles are of high quality. Thanks to the latest computer and production technologies, we have been able to build our pendle axles stronger and lighter.

Paint system

The anti-corrosion protection of a trailer is essential, you cannot simply do it 'again', it has to be done right first time!

Innovations

Driving innovation is our slogan. Progressive and always looking for new possibilities that can take you further as a transporter. From unique and innovative trailers to innovative solutions in the field of user-friendliness. View our innovations here and find out whether you are ready for the latest technology.
