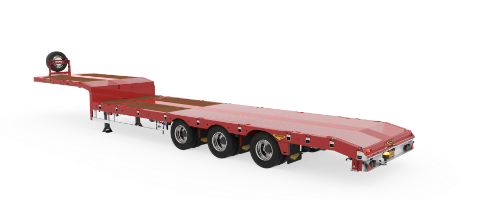

3-axle self-tracking
semi low loader

Strong and multifunctional

Looking for a 3-axle self tracking semi?

The 3-axle self-tracking semi low loader is a multifunctional trailer. Because the trailer is extendable, it can reach a length of up to 19.5 metres.

Ask us
your question!

Determine
your target price

General
specifications

  • 1x Extendable
  • Airsuspension selftracking
  • 245/70 R17.5 Tires
  • Fixed neck
  • Load capacity app. 40T

Technical
specifications

  • Kingpin load 18T
  • Bogie load 30T
  • Tare weight ca.9T
  • Platform height 870mm
  • Extension 6200mm
  • Total extended lenght 19550mm
Specification sheet

Related
products

3-axle semi low loader (205 tires)

This 3-axle self-tracking semi low loader has a low loading floor height (780mm) thanks to its 205 tires. This trailer is single-extendable and can reach a length of 19.5 meters. Thanks to its durable and robust construction, the trailer is extremely strong and quality control is our highest priority throughout the manufacture and assembly.

3-axle semi low loader with ECO ramp

This 3-axle self tracking construction semi low loader has a fuel-saving ECO ramp. This allows for loading over the ramps and the ramp is used as a loading floor.

3-axle semi low loader with ramps

This 3-axle trailing semi low loader has double-acting hydraulic ramps. It allows you to easily load and unload tracked and wheeled vehicles. Because the trailer can extend, it reaches up to 19.5 meters.
