Looking for a 3-axle semi with ECO ramp?This semi low loader with ECO ramp can be used in a flexible manner. As a result, this trailer saves fuel and you easily overhang cargo is possible.

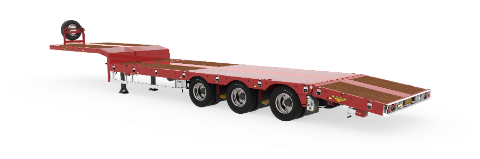

3-Axle, self-tracking, semi low loader with eco-ramp
The semi low loader with ECO ramp is the ideal solution for your wheel loaders with a large ground clearance. The ECO ramp has many advantages over the normal ramps. Because the ramp is horizontal, fuel savings can be up to about 20% and you can load over the ramps making the trailer more adaptable. The trailer is single extendable and can be 18 meters long.
- 1x Extendable
- Airsuspension selftracking
- 245/70 R17.5 Tires
- Fixed neck
- Load capacity app. 40T
- Eco ramp
- Kingpin load 18T
- Bogie load 30T
- Tare weight ca.10,6T
- Platform height 870mm
- Extension 4700mm
- Total extended lenght 18050mm
3-axle construction semi low loader with ECO ramp
This 3-axle hydraulically-steered construction semi low loader is has a single extension and is equipped with an ECO ramp. This makes the loading and unloading of machines even safer and easier. In addition, the trailer has a double wheel well and crane arm recess.
4-axle semi low loader with ECO ramp
This 4-axle self-tracking semi low loader has a fuel-saving ECO-ramp. This allows the ramp to be used as a loading floor.
3-axle semi low loader with ramps
This 3-axle trailing semi low loader has double-acting hydraulic ramps. It allows you to easily load and unload tracked and wheeled vehicles. Because the trailer can extend, it reaches up to 19.5 meters.
It is always necessary to try to reduce fuel consumption. We have developed an innovative ramp, called the ECO ramp, especially for these carriers.
The anti-corrosion protection of a trailer is essential, you cannot simply do it 'again', it has to be done right first time!
Conventional axle systems
We often mount conventional axles, also called through axles, on our trailers. We have these in an air-sprung version and also hydraulically-sprung.
