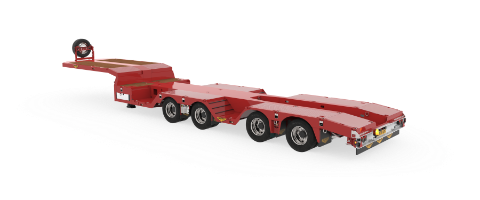

4-axle self-tracking
construction semi low loader

Low weight, ideal for construction machines

Looking for a 4-axle construction semi?

This construction semi low loader makes transporting tracked and wheeled vehicles up to 50 tons much easier. Thanks to the wheel wells and crane arm recess, you can reduce the overall transport height.

Ask us
your question!

Determine
your target price

General
specifications

  • 1x Extendable
  • Airsuspension selftracking
  • 245/70 R17.5 Tires
  • Fixed neck
  • Load capacity app. 45T
  • Single wheel well - Crane arm recess

Technical
specifications

  • Kingpin load 18T
  • Bogie load 40T
  • Tare weight ca.12T
  • Platform height 870mm
  • Extension 2000mm
  • Total extended lenght 15380mm
Specification sheet

Related
products

4-axle construction semi low loader with ramps

This 4-axle self-tracking construction semi low loader is equipped with wheel wells, a crane arm recess and hydraulic ramps. With this, you can transport almost all types of construction machines.

4-axle construction semi low loader (205 tires)

This low 4-axle self tracking steered construction semi low loader is equipped with small tyres. This allows taller construction machines to be loaded. The trailer has double wheel wells and a crane arm recess. By extending the trailer, the front wheel well can be made larger.

3-axle construction semi low loader with ramps

Our three axle, self-tracking construction semi low loader has double-acting ramps. This makes loading and unloading construction machines safer and easier.

Innovations
and techniques

Paint system

The anti-corrosion protection of a trailer is essential, you cannot simply do it 'again', it has to be done right first time!

Lightweight construction semi low loader

A lightweight construction semi low loader with wheel wells and a crane arm recess. We have succeeded in reducing the unladen weight in all models.

Wheel wells

A wheel well is a recess in the loading floor or a lowering of the loading floor. Because the tyres of vehicles are lowered, the transport height can easily be reduced.

Crane arm recess

A crane arm recess is a recess where the crane arm can easily be placed during the transport of a machine to reduce height.
