4-axle self-tracking construction
semi low loader with ramps

Safe loading/unloading via ramps

Looking for a 4-axle construction semi with ramps?

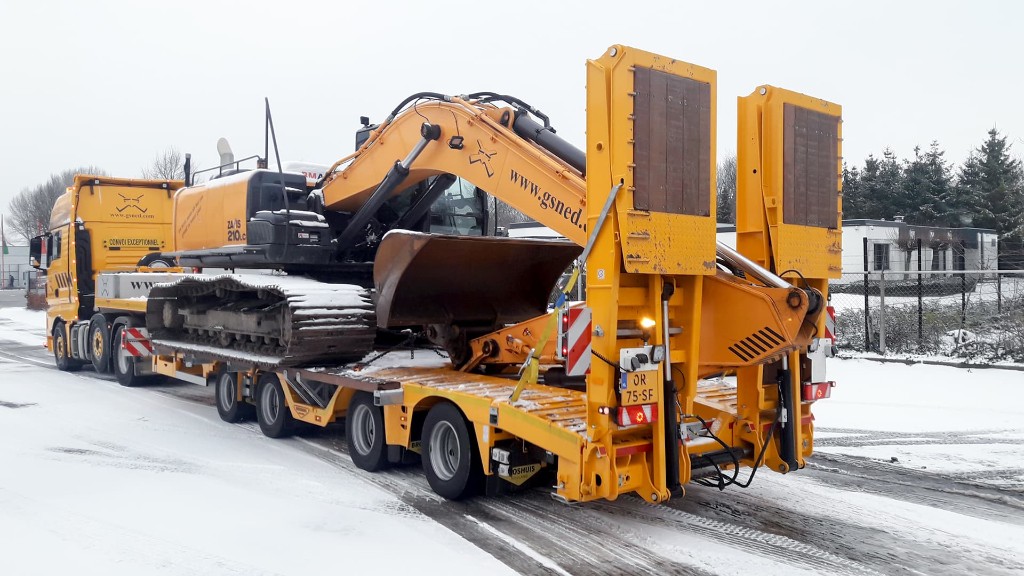

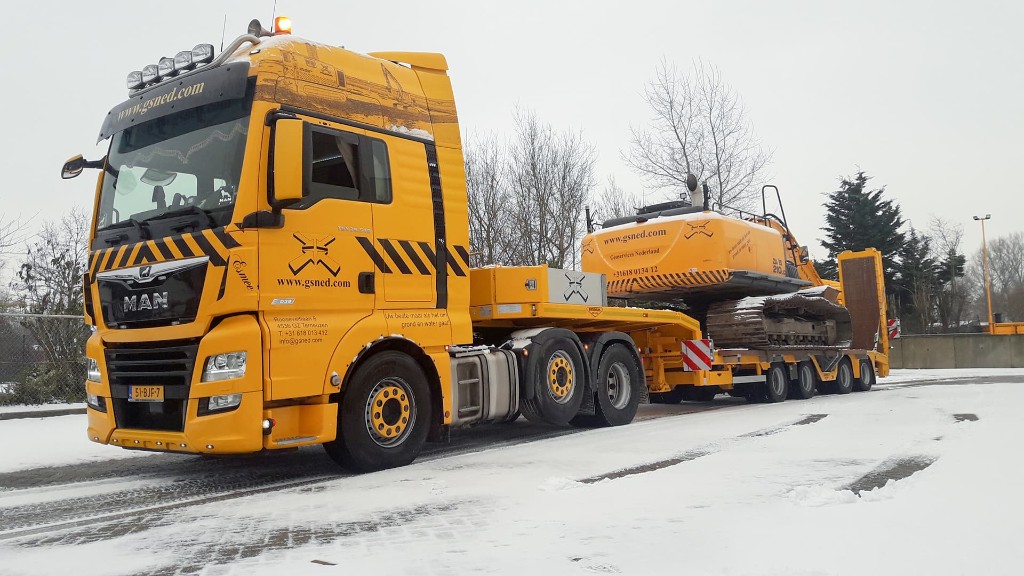

With this semi low loader, transporting tracked and wheeled vehicles becomes much safer and easier. Thanks to the wheel wells and crane arm recess, you can reduce the overall transport height.

Ask us
your question!

Determine
your target price

General
specifications

  • 1x extendable
  • Airsuspension selftracking
  • 245/70 R17.5 tyres
  • Fixed neck
  • Load capacity app. 45 t
  • Single wheel well - crane arm recess - hydr. ramps

Technical
specifications

  • Fifth wheel load 18 t
  • Bogie load 40 t
  • Tare weight ca.11.4 t
  • Platform height 870 mm
  • Extension 2,000 mm
  • Total extended lenght 15,820 mm
Specification sheet

Related
products

4-axle construction semi low loader

This 4-axle self tracking construction semi low loader is equipped with double wheel wells and a crane arm recess. By extending the trailer, the front wheel well can be made larger. With this you can transport almost all types of construction machines.

3-axle construction semi low loader with ramps

Our three axle, self-tracking construction semi low loader has double-acting ramps. This makes loading and unloading construction machines safer and easier.

4-axle construction semi low loader (205 tires)

This low 4-axle self tracking steered construction semi low loader is equipped with small tyres. This allows taller construction machines to be loaded. The trailer has double wheel wells and a crane arm recess. By extending the trailer, the front wheel well can be made larger.

Innovations
and techniques

Wheel wells

A wheel well is a recess in the loading floor or a lowering of the loading floor. Because the tyres of vehicles are lowered, the transport height can easily be reduced.

Crane arm recess

A crane arm recess is a recess where the crane arm can easily be placed during the transport of a machine to reduce height.

Hydraulic ramps

To allow the user to work with an even safer trailer, we have designed four types of ramps that fully meet our high safety and quality requirements.
