3 axle self-tracking
construction semi low loader with ramps

You can transport almost anything with it

Looking for a construction semi with ramps?

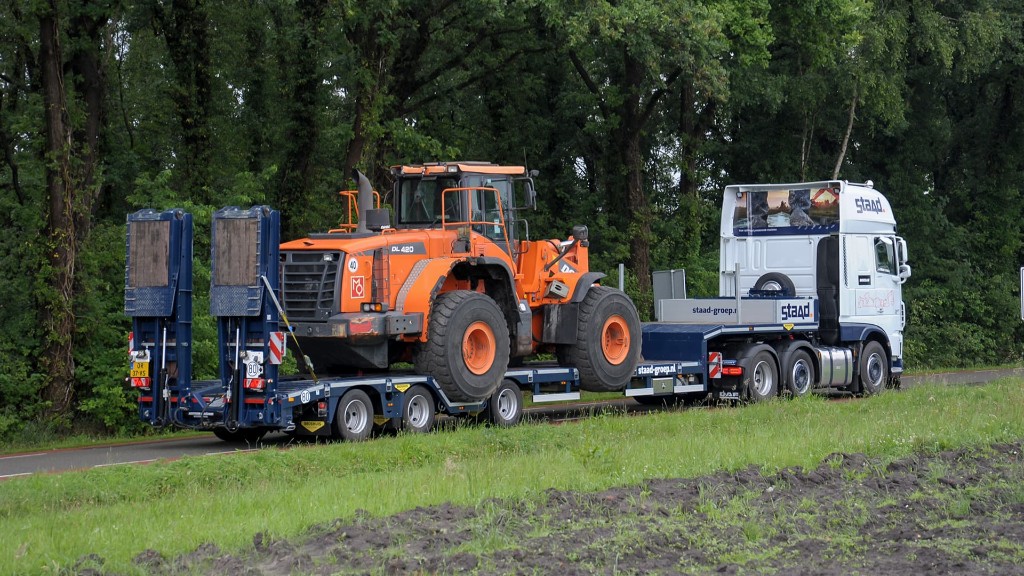

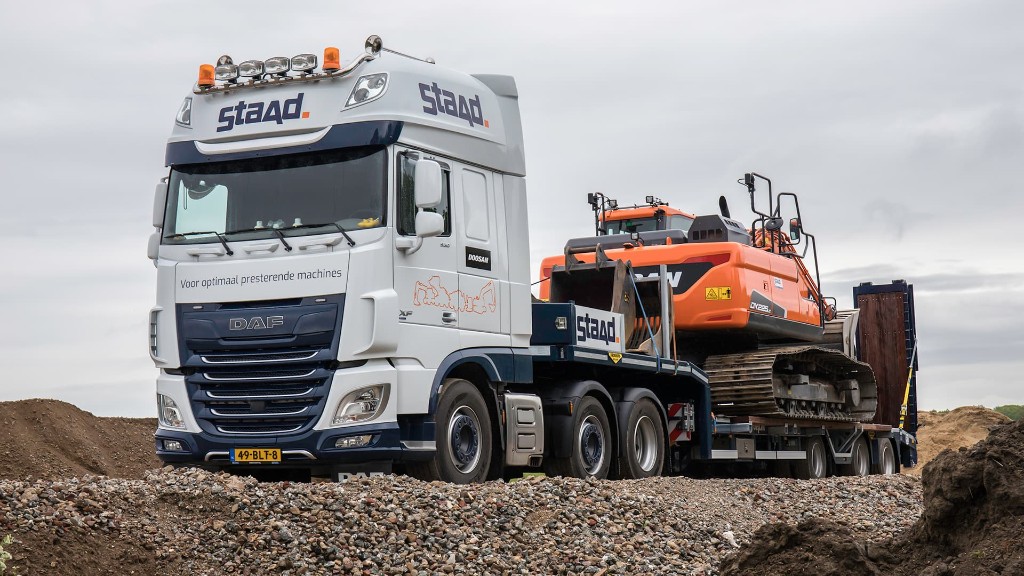

This semi low loader with ramps makes loading, unloading and transporting tracked and wheeled vehicles much easier. Thanks to the wheel wells and crane arm recess, you can reduce the overall transport height.

Ask us
your question!

Determine
your target price

General
specifications

  • 1x Extendable
  • Airsuspension selftracking
  • 245/70 R17.5 Tires
  • Fixed neck
  • Load capacity app. 40T
  • Single wheel well - Crane arm recess - Hydr. ramps

Technical
specifications

  • Kingpin load 18T
  • Bogie load 30T
  • Tare weight ca.10,7T
  • Platform height 870mm
  • Extension 2000mm
  • Total extended lenght 15820mm
Specification sheet

Related
products

3-axle construction semi low loader

This three axle self-tracking construction semi low loader is equipped with wheel wells and a crane arm recess. This allows you to transport almost all construction machines up to 39 tons.

3-axle construction semi low loader

This 3-axle self-tracking construction semi low loader has double wheel wells and a crane arm recess. This makes the trailer extremely flexible in use. Because the front wheel well is extra large, vehicles with various wheelbases can be transported.

4-axle construction semi low loader with ramps

This 4-axle self-tracking construction semi low loader is equipped with wheel wells, a crane arm recess and hydraulic ramps. With this, you can transport almost all types of construction machines.

Innovations
and techniques

Wheel wells

A wheel well is a recess in the loading floor or a lowering of the loading floor. Because the tyres of vehicles are lowered, the transport height can easily be reduced.

Crane arm recess

A crane arm recess is a recess where the crane arm can easily be placed during the transport of a machine to reduce height.

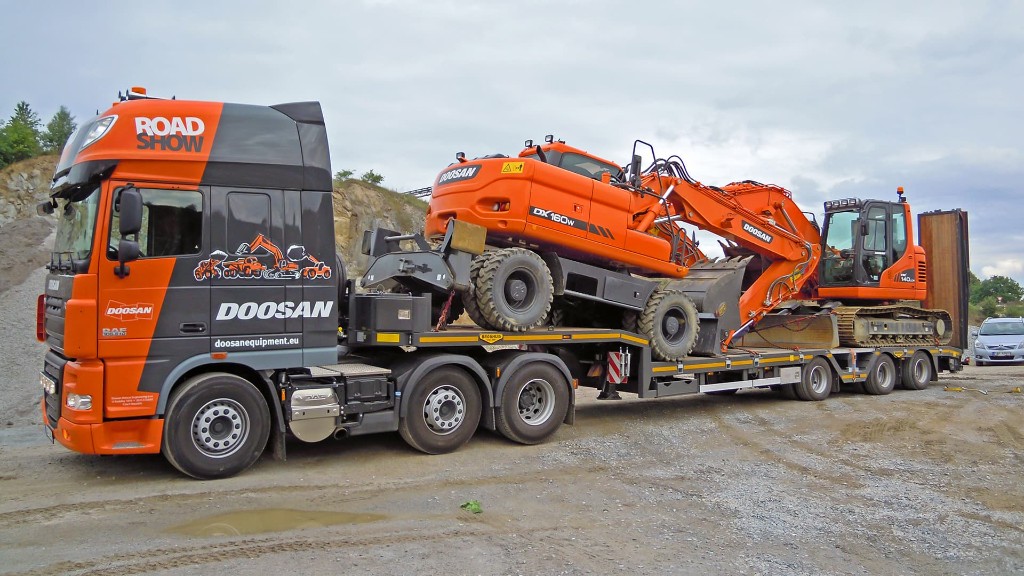

Hydraulic ramps

To allow the user to work with an even safer trailer, we have designed four types of ramps that fully meet our high safety and quality requirements.

Lightweight construction semi low loader

A lightweight construction semi low loader with wheel wells and a crane arm recess. We have succeeded in reducing the unladen weight in all models.
